Individual parcel net, footwell for BMW 7 Series E66 760Li (2005)

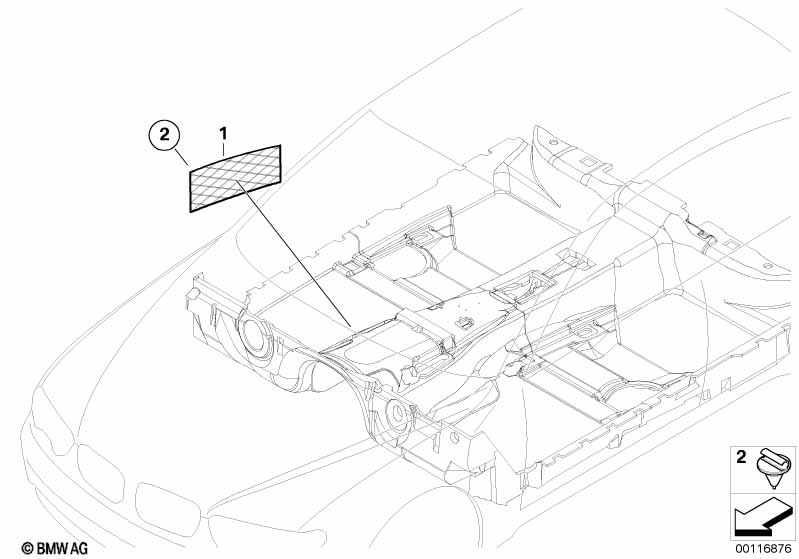

This Individual parcel net, footwell technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general |
|||||||||
| 01 | Parcel net | 1 | 51472277266 | ENDED | Shop at ECS Tuning | |||||
| 02 | Fastening elements | 4 | 51472263062 | $0.50 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E66 760Li Individual parcel net, footwell?
- This technical diagram illustrates the Individual parcel net, footwell within the Individual equipment group for the 7 Series E66 760Li produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Parcel net (Part #51472277266).
- Which models use the hardware listed in this Individual parcel net, footwell?
- The hardware and components featured in the Individual parcel net, footwell are specific to the 7 Series E66 760Li produced during 2005. These technical specifications ensure that parts like the Parcel net (51472277266) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual parcel net, footwell assembly?
- Each item in the Individual parcel net, footwell corresponds to the numbered list below the illustration. For the 7 Series E66 760Li, you can identify the Parcel net by locating its position on the schematic, which then links to the official BMW part number 51472277266 for the Individual equipment section.
