Individual handbrake lever and cover for BMW Z8 E52 Z8 (2003)

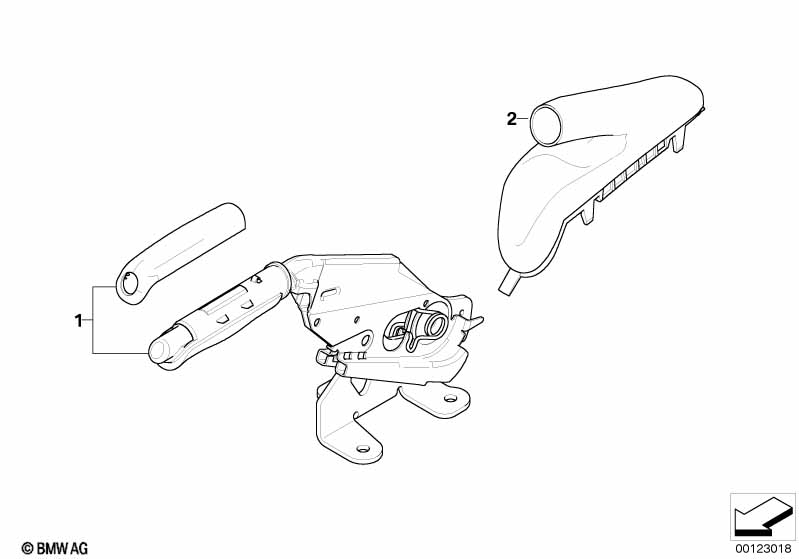

This Individual handbrake lever and cover technical drawing provides a detailed breakdown of the assembly for the Z8 E52 Z8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general --------------------------- Important! Series parts or retrofits not possible via this order no. --------------------------- |
|||||||||
| 01 | Leather handbrake lever | KASTANIE HELL | 1 | 34418020178 | $79.52 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Leather handbrake lever | HELLGRAU | 1 | 34418020637 | $79.52 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Leather handbrake lever | SILBERGRAU DKL. | 1 | 34418024885 | $79.52 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Leather handbrake lever | ZIMT | 1 | 34418026069 | $79.52 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Leather handbrake lever | MODENA | 1 | 34418027027 | $79.52 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Leather handbrake lever cover | SILBERGRAU DKL. | 1 | 34428016093 | $200.88 | +core, NoS | Shop at ECS Tuning | |||
| 02 | Leather handbrake lever cover | KASTANIE HELL | 1 | 34428020177 | $200.88 | +core, NoS | Shop at ECS Tuning | |||
| 02 | Leather handbrake lever cover | HELLGRAU | 1 | 34428020636 | $200.88 | +core, NoS | Shop at ECS Tuning | |||
| 02 | Leather handbrake lever cover | ZIMT | 1 | 34428026068 | $200.88 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Leather handbrake lever cover | MODENA | 1 | 34428027026 | $200.88 | NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
