Individual front door trim panel,leather for BMW 7 Series E65 730i (2008)

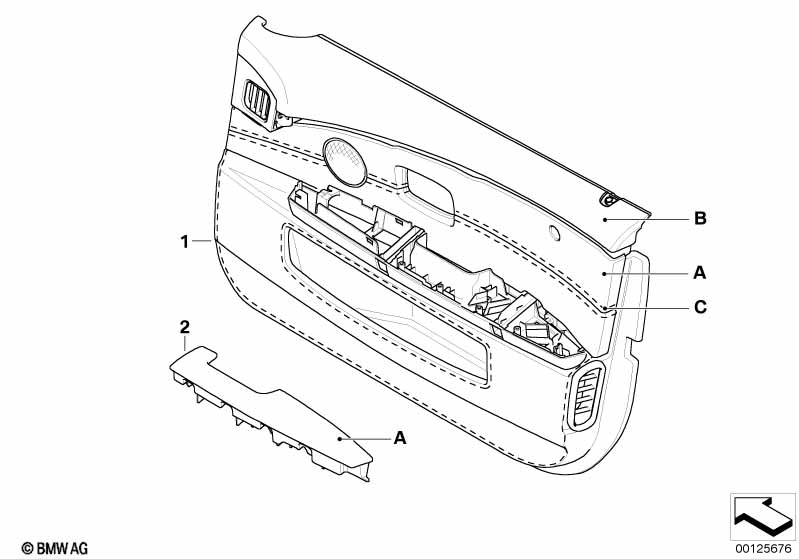

This Individual front door trim panel,leather technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Colour of upper part leather - (C) Colour of thread = matching --------------------------- Design: . Lower section, center cover and soft pad (A) - in special leather . Upper section (B) - only in Nasca leather - black - flannel grey --------------------------- special leather version: -only in leather Merino --------------------------- |
|||||||||
| with Air Bag | ||||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 03/2005 | 51417972813 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 03/2005 | 51417972814 | $2569.94 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Soft pad, front left | INDIVIDUAL | 1 | 09/2002 | 51418022947 | $241.06 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Soft pad, front right | INDIVIDUAL | 1 | 09/2002 | 51418022948 | $241.06 | ENDED, +core, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
