Individual cover, leather comfort seat for BMW 7 Series E65 730d (2005)

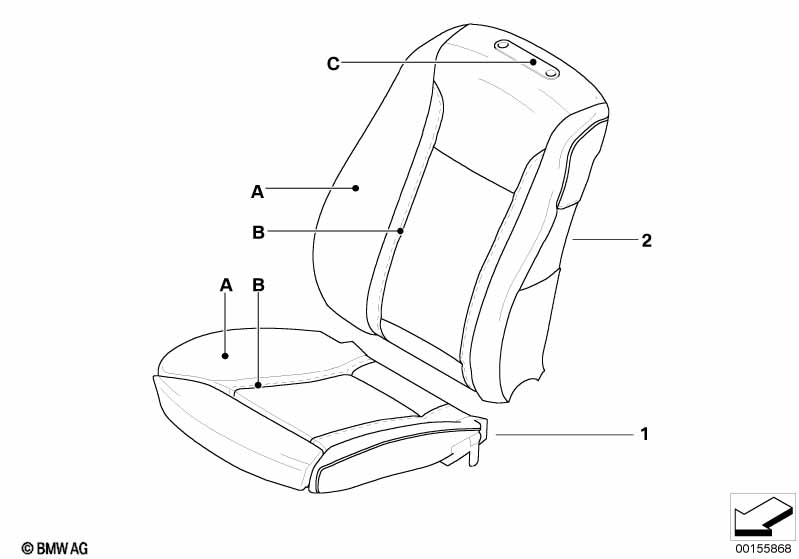

This Individual cover, leather comfort seat technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching - (C) Finishers colour --------------------------- Version: only in leather Merino Seam pattern = N7 --------------------------- Finishers available in - black - flannel-grey --------------------------- For vehicles with Comfort seat with memory |
S456A=Yes |
||||||||
| Version with seat heating (also suitable for vehicles without seat heating) |
||||||||||
| 01 | Seat cover, comfort seat, leather | U7 | 2 | 09/2002 | 52108022994 | $1217.00 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Cover backrest, comfort seat, leather | U7 | 2 | 09/2002 | 52108022995 | $1481.60 | ENDED, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
