Indiv. intercom - Loudspeaker for BMW 7 Series E66 760Li (2008)

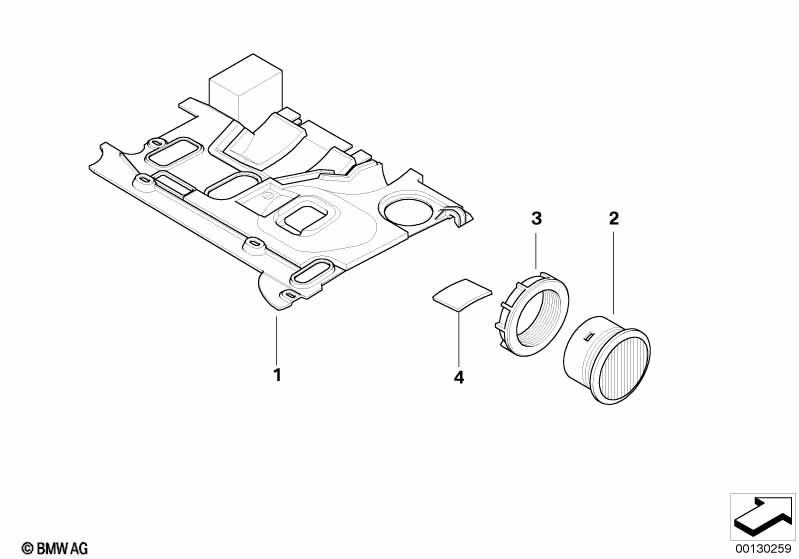

This Indiv. intercom - Loudspeaker technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- For vehicles with National version japan |
L807A=No |
||||||||
| 01 | Trim panel foot controls | SCHWARZ | 1 | 10/2002 | 51458024899 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Trim panel foot controls | SCHWARZ | 1 | 10/2002 | 51457045010 | $35.68 | ENDED | Shop at ECS Tuning | ||
| 02 | Loudspeaker hands free telephone | 1 | 10/2002 | 84318375642 | $31.52 | Shop at ECS Tuning | ||||
| 03 | Loudspeaker threaded ring | 1 | 10/2002 | 65138360690 | $1.77 | Shop at ECS Tuning | ||||
| 04 | Base | 1 | 10/2002 | 16111180163 | $1.08 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
