Indiv. intercom - Control unit for BMW 7 Series E66 745Li (2005)

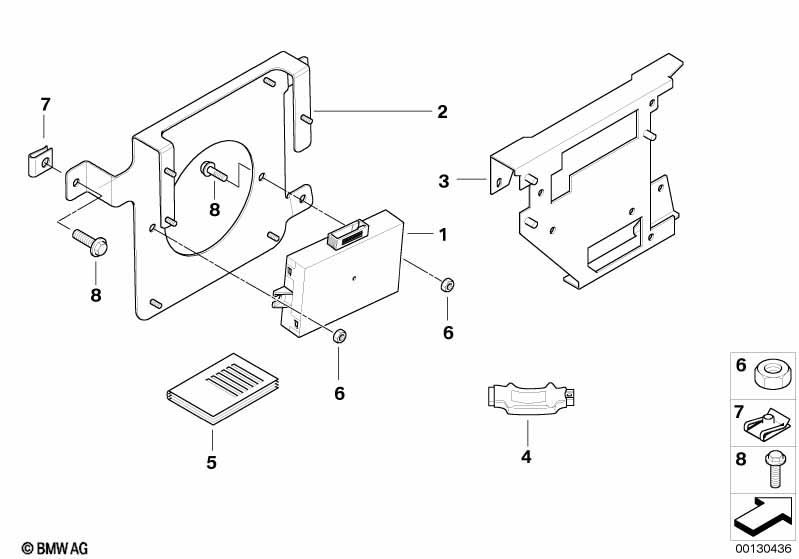

This Indiv. intercom - Control unit technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 745Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 --------------------------- ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. For vehicles with National version japan |
L807A=No |
||||||||
| 01 | Control unit intercom, individual | 1 | 10/2002 | 61358025128 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| Bracket f intercom control unit | ||||||||||
| 03 | Bracket, headset module | 1 | 09/2003 | 84136907376 | $10.01 | Shop at ECS Tuning | ||||
| 04 | Microphone amplifier f intercom system | 2 | 10/2002 | 61356914296 | Shop at ECS Tuning | |||||
| 05 | Suppl. Owner's Handbook multilingual | E65/E66 | 1 | 10/2002 | 01498024656 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex nut | M5 | 2 | 10/2002 | 07129902974 | $0.88 | Shop at ECS Tuning | |||
| 07 | Body nut | M5 | 3 | 10/2002 | 61131372033 | $1.37 | Shop at ECS Tuning | |||
| 08 | Hex bolt | M5X14 | 5 | 10/2002 | 07119902932 | $0.53 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
