Individual floor mats, Leather border for BMW 3 Series E46 318i (2001)

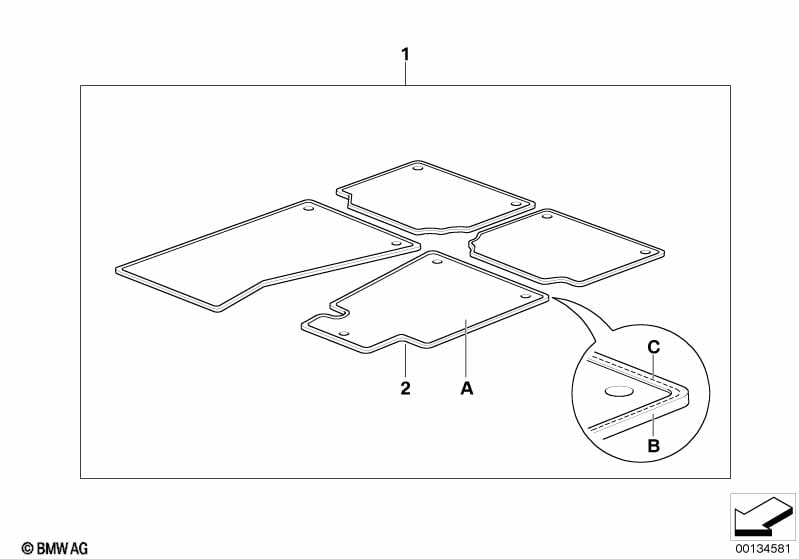

This Individual floor mats, Leather border technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Color / material specification (floor mat) - (B) Part number, leather (border) - (C) Color specification, thread = compatible --------------------------- |
|||||||||
| with leather border | ||||||||||
| 01 | Set of floor mats Velours | INDIVIDUAL | 1 | 51478029981 | $245.75 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Floor mat velours driver side | INDIVIDUAL | 1 | 51478029983 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
