Individual center armrest, leather for BMW 5 Series E61 545i (2005)

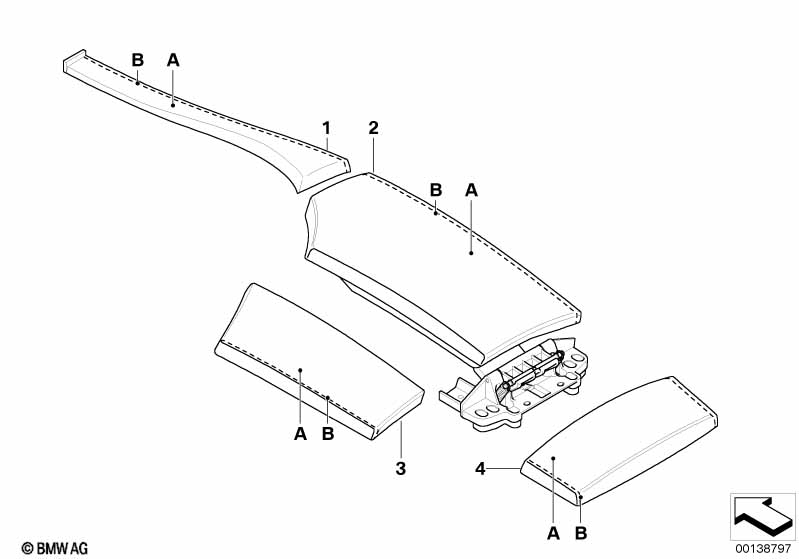

This Individual center armrest, leather technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 545i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- Version: only in leather Merino --------------------------- For vehicles with Armrest front |
S473A=Yes |
||||||||
| 01 | Cover center console | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51168028467 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Cover, centre console | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51168027317 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 03 | Center arm rest | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51168027305 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 04 | Cover centre console, rear | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51168027323 | ENDED, +core, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
