Indiv. rear door trim panel,part.leather for BMW 5 Series E60 525i (2005)

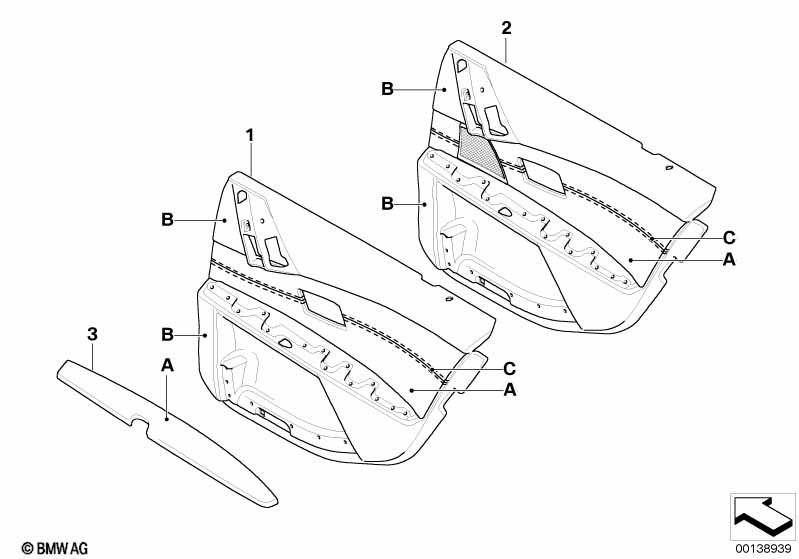

This Indiv. rear door trim panel,part.leather technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Colour of Upper / Bottom part - (C) Colour of thread = matching --------------------------- Version: . Center cover and armrest (A) - in leather . Upper part / Lower part (B) - in PVC foil --------------------------- Version: only in leather Merino or Leather Dakota --------------------------- |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027203 | $1102.05 | ENDED, +core, NoS | Shop at ECS Tuning | |
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027204 | $1102.05 | ENDED, +core, NoS | Shop at ECS Tuning | |
| For vehicles with Side airbags for rear passengers |
S261A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027263 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027264 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear lateral |
S416A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027239 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027240 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral |
S261A=Yes S416A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027329 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027330 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027227 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027228 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP |
S416A=Yes S677A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027251 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027252 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and HiFi System Professional DSP |
S261A=Yes S677A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027275 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027276 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and HiFi System Professional DSP |
S261A=Yes S416A=Yes S677A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027341 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027342 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 03 | Armrest, left | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027401 | $219.85 | ENDED, +core, NoS | Shop at ECS Tuning | |
| 03 | Armrest, right | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 51428027402 | $219.85 | ENDED, NoS | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
