Individual cover,Klima-Leather comf.seat for BMW 5 Series E61 525d (2007)

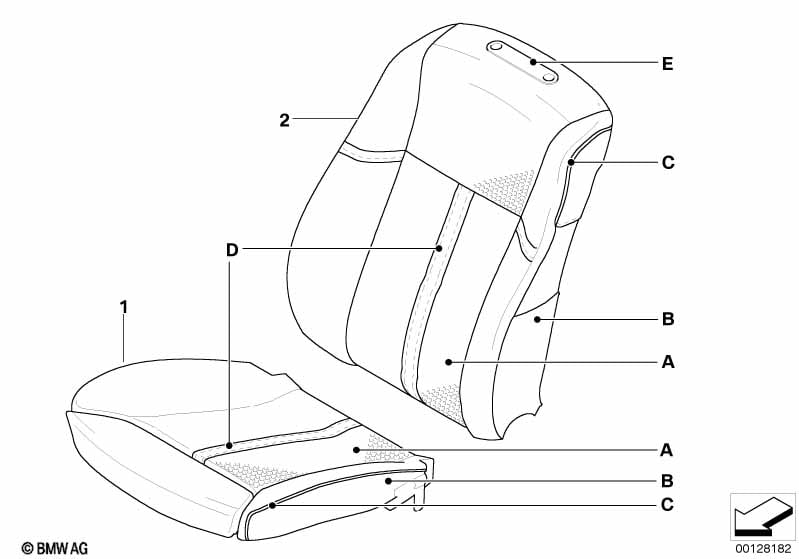

This Individual cover,Klima-Leather comf.seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather (perforated) - (B) Part number leather (smooth) - (C) Part number leather (piping) - (D) Colour of thread - (E) Colour of cover --------------------------- Seam pattern = U6 / Active seat A/C --------------------------- Finishers available in - black --------------------------- For vehicles with Climate-controlled seats, front and Comfort seat with memory |
S453A=Yes S456A=Yes |
||||||||
| Version with seat heating (also suitable for vehicles without seat heating) |
||||||||||
| 01 | Seat cover, comfort seat, leather | U6 KLIMALEDER | 2 | 03/2004 | 52108030080 | $1044.83 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Cover backrest, comfort seat, leather | U6 KLIMALEDER | 2 | 03/2004 | 52108030081 | $1481.60 | ENDED, +core, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
