Individual sports seat cover, rear for BMW 5 Series E60 LCI 525d (2009)

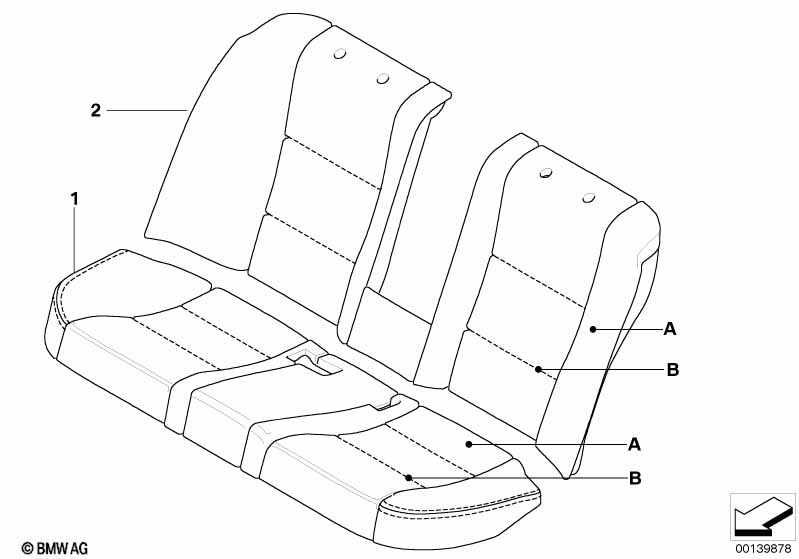

This Individual sports seat cover, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- Version: only in leather Merino --------------------------- Version with seat heating (also suitable for vehicles without seat heating) For vehicles with Sports seat |
S481A=Yes |
||||||||
| 01 | Leather seat cover, rear | INDIVIDUAL | 1 | 03/2004 | 52208027696 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather, rear | INDIVIDUAL | 1 | 03/2004 | 52208027152 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 525d Individual sports seat cover, rear?
- This technical diagram illustrates the Individual sports seat cover, rear within the Individual equipment group for the 5 Series E60 LCI 525d produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Leather seat cover, rear (Part #52208027696).
- Which models use the hardware listed in this Individual sports seat cover, rear?
- The hardware and components featured in the Individual sports seat cover, rear are specific to the 5 Series E60 LCI 525d produced during 2009. These technical specifications ensure that parts like the Leather seat cover, rear (52208027696) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual sports seat cover, rear assembly?
- Each item in the Individual sports seat cover, rear corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 525d, you can identify the Leather seat cover, rear by locating its position on the schematic, which then links to the official BMW part number 52208027696 for the Individual equipment section.
