Individual cover rear comfort seat for BMW 5 Series E60 525xi (2007)

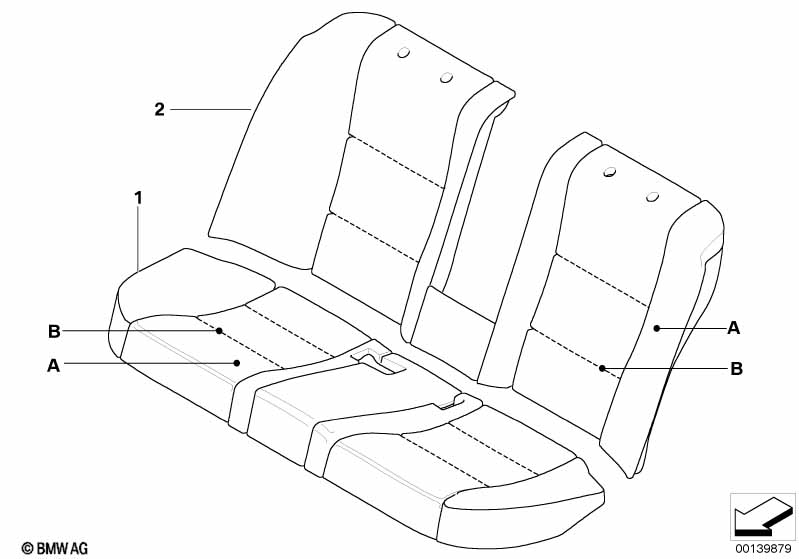

This Individual cover rear comfort seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- Version: only in leather Merino --------------------------- Version with seat heating (also suitable for vehicles without seat heating) For vehicles with Comfort seat with memory |
S456A=Yes |
||||||||
| 01 | Leather seat cover, rear | INDIVIDUAL | 1 | 03/2004 | 52208027698 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather, rear | INDIVIDUAL | 1 | 03/2004 | 52208027161 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
