Individual cover Klima-Leather, rear for BMW 5 Series E60 LCI 525i (2009)

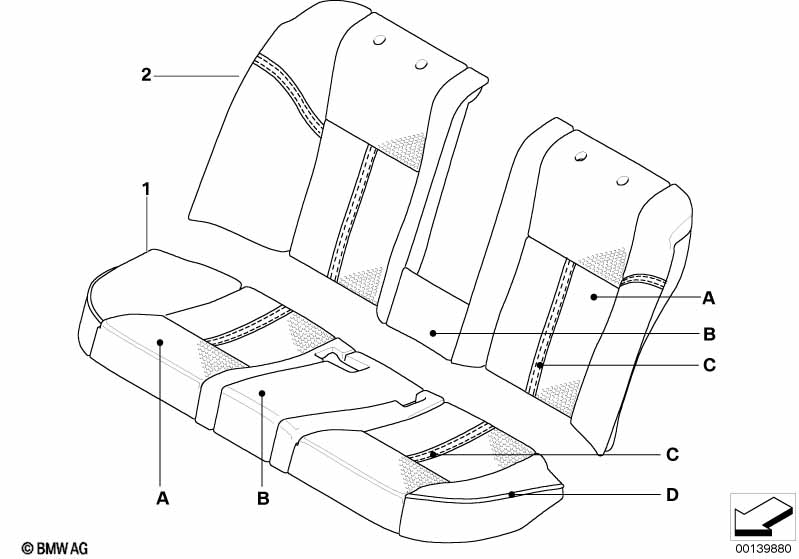

This Individual cover Klima-Leather, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather (perforated) - (B) Part number leather (smooth) - (C) Colour of thread - (D) Part number leather (piping) --------------------------- Version: only in leather Merino KLIMA-LEATHER --------------------------- Version with seat heating (also suitable for vehicles without seat heating) For vehicles with Climate-controlled seats, front and Comfort seat with memory |
S453A=Yes S456A=Yes |
||||||||
| 01 | Leather seat cover, rear | INDIVIDUAL | 1 | 03/2004 | 52208030041 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather, rear | INDIVIDUAL | 1 | 03/2004 | 52208030050 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
