Individual armrest of rear comfort seat for BMW 5 Series E60 LCI 535d (2009)

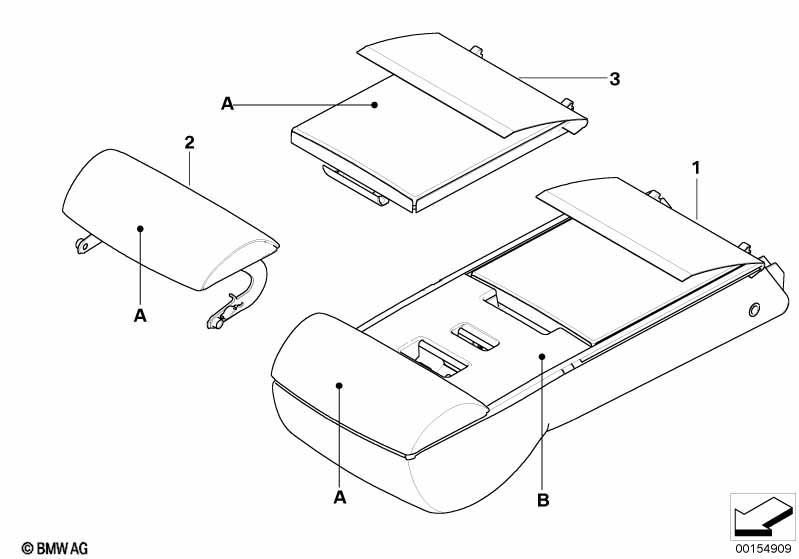

This Individual armrest of rear comfort seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Finishers color --------------------------- Version: only in leather Merino --------------------------- Finishers available in - black --------------------------- |
|||||||||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 01 | Armrest Basis with shelf, leather | INDIVIDUAL | 1 | 03/2004 | 52207964463 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Cover f cup holder, leather | INDIVIDUAL | 1 | 03/2004 | 52208030676 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Cover, armrest leather | INDIVIDUAL | 1 | 03/2004 | 52208030623 | ENDED, +core, NoS | Shop at ECS Tuning | |||
