Ind.armrest load-through syst.sport seat for BMW 5 Series E60 M5 (2009)

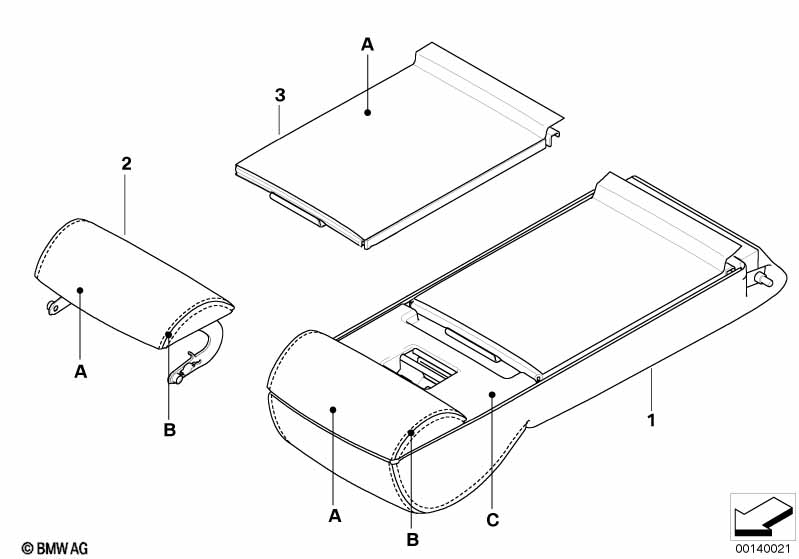

This Ind.armrest load-through syst.sport seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching - (C) Finishers colour --------------------------- Version: only in leather Merino --------------------------- Finishers available in - black --------------------------- For vehicles with Through-loading system or Coolbox |
S465A=Yes S791A=Yes |
||||||||
| 01 | Armrest, through-load, leather | INDIVIDUAL | 1 | 02/2005 | 52208030668 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover f cup holder, leather | INDIVIDUAL | 1 | 02/2005 | 52208030675 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Cover, through-load.syst armrest leather | INDIVIDUAL | 1 | 03/2004 | 52208029701 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
