Individual wood, Pianolack schwarz for BMW 5 Series E60 525xi (2007)

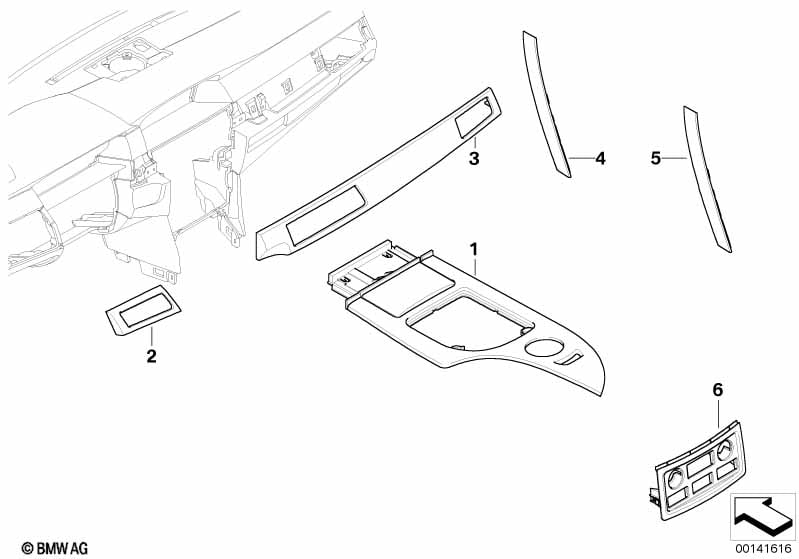

This Individual wood, Pianolack schwarz technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- |
|||||||||
| 01 | Cover centre console, front | PIANOLACK SW | 1 | 03/2004 | 03/2007 | 51168026439 | $691.31 | ENDED, NoS | Shop at ECS Tuning | |
| 02 | Wood panel, instrument panel, left | PIANOLACK SW | 1 | 03/2006 | 03/2007 | 51457963769 | $135.23 | ENDED, NoS | Shop at ECS Tuning | |
| 02 | Wood panel, instrument panel, left | PIANOLACK SW | 1 | 03/2006 | 03/2007 | 51457970247 | $139.93 | ENDED, NoS | Shop at ECS Tuning | |
| 03 | Wood panel, instrument panel, right | PIANOLACK SW | 1 | 03/2006 | 03/2007 | 51457963770 | $334.77 | ENDED, NoS | Shop at ECS Tuning | |
| 03 | Wood panel, instrument panel, right | PIANOLACK SW | 1 | 03/2006 | 03/2007 | 51457970248 | $373.21 | NoS | Shop at ECS Tuning | |
| 04 | Wooden strip, door front left | PIANOLACK SW | 1 | 03/2004 | 03/2007 | 51418026985 | $193.45 | ENDED, NoS | Shop at ECS Tuning | |
| 04 | Wooden strip, door front right | PIANOLACK SW | 1 | 03/2004 | 03/2007 | 51418026986 | $193.45 | ENDED, NoS | Shop at ECS Tuning | |
| 05 | Wooden strip, door rear left | PIANOLACK SW | 1 | 03/2004 | 03/2007 | 51428026991 | $193.45 | ENDED, NoS | Shop at ECS Tuning | |
| 05 | Wooden strip, door rear right | PIANOLACK SW | 1 | 03/2004 | 03/2007 | 51428026992 | $193.45 | ENDED, NoS | Shop at ECS Tuning | |
| 06 | Cover centre console, rear | PIANOLACK SW | 1 | 03/2006 | 03/2007 | 51167970239 | $199.44 | ENDED, NoS | Shop at ECS Tuning | |
| For vehicles with Seat heating, rear |
S496A=Yes |
|||||||||
| 06 | Cover centre console, rear | PIANOLACK SW | 1 | 03/2006 | 03/2007 | 51167970240 | $199.44 | ENDED, NoS | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
