Individual wood cover for I-panel,center for BMW 5 Series E60 525xi (2007)

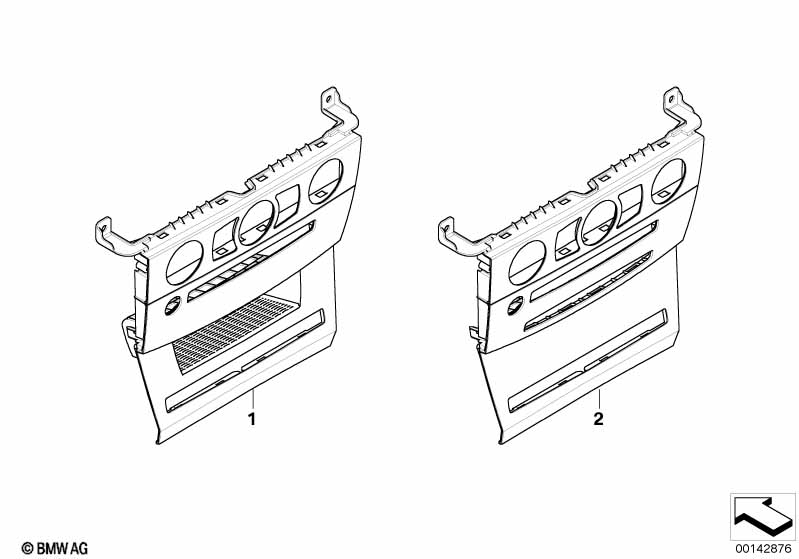

This Individual wood cover for I-panel,center technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- |
|||||||||
| 01 | Cover instrument panel, center, black | NUßBAUM AMARONE | 1 | 09/2004 | 03/2007 | 51458031580 | $241.00 | ENDED, NoS | Shop at ECS Tuning | |
| 01 | Cover instrument panel, center, black | RIEGELESCHE H. | 1 | 09/2004 | 03/2007 | 51458031582 | $283.46 | ENDED, NoS | Shop at ECS Tuning | |
| 01 | Cover instrument panel, center, black | PIANOLACK SW | 1 | 09/2004 | 03/2007 | 51458031584 | $283.46 | ENDED, NoS | Shop at ECS Tuning | |
| 01 | Cover instr. panel,center, basalt-gray | NUßBAUM AMARONE | 1 | 09/2004 | 03/2007 | 51458031630 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Cover instr. panel,center, basalt-gray | RIEGELESCHE H. | 1 | 09/2004 | 03/2007 | 51458031632 | $283.46 | ENDED, NoS | Shop at ECS Tuning | |
| 01 | Cover instr. panel,center, basalt-gray | PIANOLACK SW | 1 | 09/2004 | 03/2007 | 51458031634 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Cover instrument panel, center, black | NUßBAUM AMARONE | 1 | 09/2004 | 03/2007 | 51458031581 | $283.46 | ENDED, NoS | Shop at ECS Tuning | |
| 02 | Cover instrument panel, center, black | RIEGELESCHE H. | 1 | 09/2004 | 03/2007 | 51458031583 | $283.46 | ENDED, NoS | Shop at ECS Tuning | |
| 02 | Cover instrument panel, center, black | PIANOLACK SW | 1 | 09/2004 | 03/2007 | 51458031585 | $241.00 | ENDED, NoS | Shop at ECS Tuning | |
| 02 | Cover instr. panel,center, basalt-gray | NUßBAUM AMARONE | 1 | 09/2004 | 03/2007 | 51458031631 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Cover instr. panel,center, basalt-gray | RIEGELESCHE H. | 1 | 09/2004 | 03/2007 | 51458031633 | $233.24 | ENDED, NoS | Shop at ECS Tuning | |
| 02 | Cover instr. panel,center, basalt-gray | PIANOLACK SW | 1 | 09/2004 | 03/2007 | 51458031635 | $252.22 | ENDED, NoS | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
