Ind.armrest load-through syst.basic seat for BMW 5 Series E61 530xd (2007)

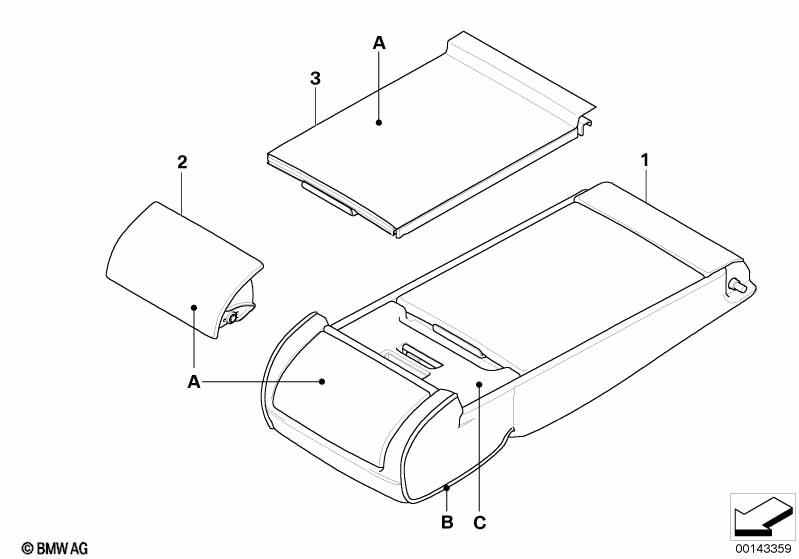

This Ind.armrest load-through syst.basic seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Part number leather (piping) - (C) Colour of cover --------------------------- Version: only in leather Merino --------------------------- Finishers available in - black --------------------------- |
|||||||||
| For vehicles with Standard seat, front |
=Yes |
|||||||||
| 01 | Armrest, through-load, leather | INDIVIDUAL | 1 | 09/2004 | 52208029680 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover f cup holder, leather | INDIVIDUAL | 1 | 09/2004 | 52208029702 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Cover, through-load.syst armrest leather | INDIVIDUAL | 1 | 09/2004 | 52208034194 | ENDED, +core, NoS | Shop at ECS Tuning | |||
