Individual front door trim panel,leather for BMW 5 Series E60 520d (2007)

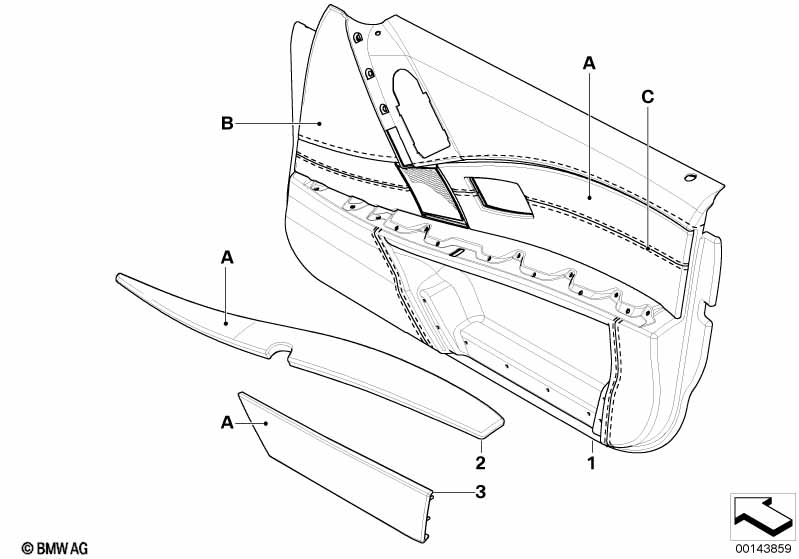

This Individual front door trim panel,leather technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) part number, leather - (B) black leather - (C) Color ID thread --------------------------- Version: . Door panel and center cover (A) - in special leather . Upper part (B) - in leather Walknappa schrumpfarm black (2 698 406) --------------------------- Version: only in leather Merino --------------------------- |
|||||||||
| with Air Bag | ||||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51418027191 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51418027192 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Armrest, left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51418027205 | $222.08 | ENDED, NoS | Shop at ECS Tuning | |
| 02 | Armrest, right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51418027206 | $222.08 | ENDED, NoS | Shop at ECS Tuning | |
| 03 | Door pocket, leather front left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51418029321 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 03 | Door pocket, leather front right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51418029322 | ENDED, +core, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
