Individual rear door trim panel,leather for BMW 5 Series E60 530i (2005)

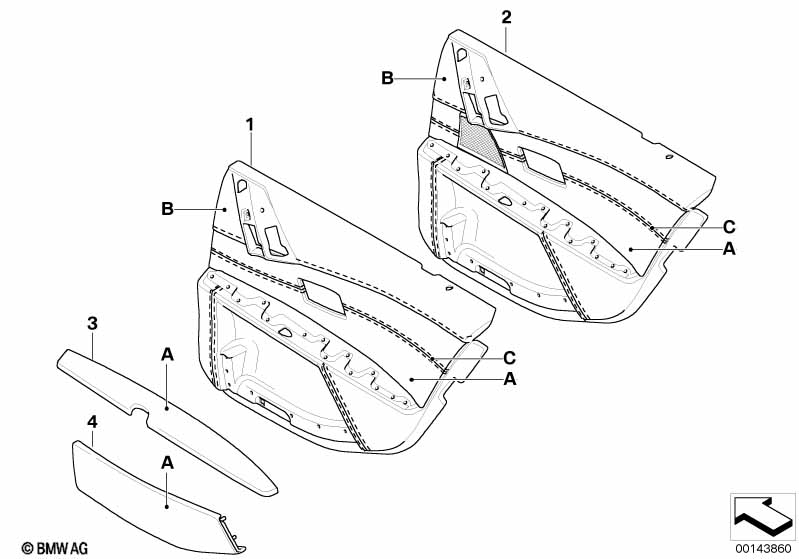

This Individual rear door trim panel,leather technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) part number, leather - (B) black leather - (C) Color ID thread --------------------------- Version: . Door panel and center cover (A) - in special leather . Upper part (B) - in leather Walknappa schrumpfarm black (2 698 406) --------------------------- Version: only in leather Merino --------------------------- |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027353 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027354 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers |
S261A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027449 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027450 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear lateral |
S416A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027377 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027378 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral |
S261A=Yes S416A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027425 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027426 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027365 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027366 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and HiFi System Professional DSP |
S261A=Yes S677A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027461 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027462 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP |
S416A=Yes S677A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027389 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027390 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and HiFi System Professional DSP |
S261A=Yes S416A=Yes S677A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027437 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027438 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 03 | Armrest, left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027401 | $219.85 | ENDED, +core, NoS | Shop at ECS Tuning | |
| 03 | Armrest, right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428027402 | $219.85 | ENDED, NoS | Shop at ECS Tuning | |
| 04 | Door pocket, leather rear left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428029337 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 04 | Door pocket, leather rear right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428029338 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 04 | Door pocket, leather rear left | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428029349 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 04 | Door pocket, leather rear right | INDIVIDUAL | 1 | 09/2004 | 03/2007 | 51428029350 | ENDED, +core, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
