Individual series, Germany KA153 Part 2 for BMW 5 Series E39 540i (2003)

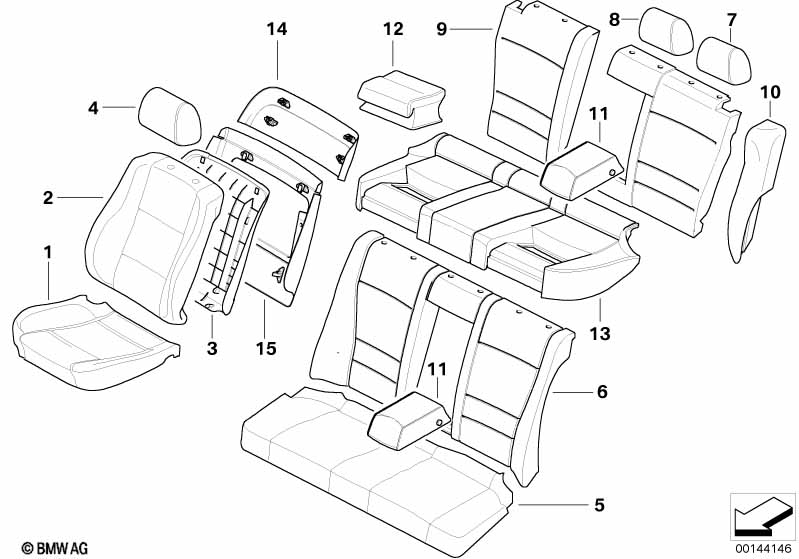

This Individual series, Germany KA153 Part 2 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Individual series, Germany KA153 Part 2
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Only applies to
individual vehicles with upholstery
code Z1XX
or
SA 940 = option in general
---------------------------
Leather, felted nappa, champagne
Affected equipment parts: - seats, trim
piece for centre console: - door
panels, centre armrest - centre
console, handbrake lever - shift and
selector lever bellows Remaining
interior equipment: - V6SW Exclusive
leather, black
---------------------------
Strips and covers in special wood
see illustration 91_0129
---------------------------
Steering wheel, see illustration 91_0079
---------------------------
Door panels, center armrest, parking
brake lever cover, selector lever
bellows, center console and cover, see
screen 91_0641
---------------------------
for floor mats, see figure 91_0449
For vehicles with
basic seat (standard seat)
Seat cover
=Yes
01 Seat cover leather CHAMPAGNER 2 11/2002 52108015896 ENDED Shop at ECS Tuning
For vehicles with
Comfort seat with memory
Seat cover
S456A=Yes
01 Seat cover leather CHAMPAGNER 2 11/2002 52108015896 ENDED, NoS Shop at ECS Tuning
For vehicles with
Sports seat
Seat cover
S481A=Yes
01 Cover, sports seat, leather CHAMPAGNER 2 11/2002 52108015901 ENDED, NoS Shop at ECS Tuning
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat
Seat cover
S459A=Yes

S481A=Yes
01 Cover, sports seat, leather CHAMPAGNER 2 11/2002 52108015903 ENDED, NoS Shop at ECS Tuning
For vehicles with
basic seat (standard seat)
Backrest cover
=Yes
02 Cover backrest, leather CHAMPAGNER 2 11/2002 52108015897 ENDED, NoS Shop at ECS Tuning
For vehicles with
Comfort seat with memory
Backrest cover
S456A=Yes
02 Cover backrest, leather CHAMPAGNER 2 11/2002 52108015899 ENDED, NoS Shop at ECS Tuning
For vehicles with
Sports seat
Backrest cover
S481A=Yes
02 Cover, backrest, sports seat, leather CHAMPAGNER 2 11/2002 52108015902 ENDED, NoS Shop at ECS Tuning
For vehicles with
basic seat (standard seat)
REAR PANEL WITH BAG
=Yes
03 Rear panel, leather, with bag CHAMPAGNER 2 11/2002 52108008534 ENDED, +core, NoS Shop at ECS Tuning
For vehicles with
Sports seat
REAR PANEL WITH BAG
S481A=Yes
03 Rear panel seat leather CHAMPAGNER 2 11/2002 52108015904 ENDED, NoS Shop at ECS Tuning
For vehicles with
basic seat (standard seat)
HEADREST
=Yes
04 Headrest leather CHAMPAGNER 2 11/2002 52108015895 ENDED, +core, NoS Shop at ECS Tuning
For vehicles with
Comfort seat with memory
HEADREST
S456A=Yes
04 Headrest leather CHAMPAGNER 2 11/2002 52108015898 ENDED, +core, NoS Shop at ECS Tuning
For vehicles with
Sports seat
HEADREST
S481A=Yes
04 Headrest leather CHAMPAGNER 2 11/2002 52108015900 ENDED, +core, NoS Shop at ECS Tuning
REAR SEAT COVER
05 Seat cover leather CHAMPAGNER 1 11/2002 52208015908 ENDED, +core, NoS Shop at ECS Tuning
For vehicles with
Through-loading system
REAR SEAT COVER
S465A=Yes
05 Seat cover leather CHAMPAGNER 1 11/2002 52208015913 ENDED, +core, NoS Shop at ECS Tuning
Cover backrest, rear
06 Cover backrest, leather CHAMPAGNER 1 11/2002 52208015909 ENDED, NoS Shop at ECS Tuning
Headrest rear lateral
07 Headrest leather CHAMPAGNER 2 11/2002 52208015905 ENDED, +core, NoS Shop at ECS Tuning
Headrest rear center-seat
08 Headrest, center, leather CHAMPAGNER 1 11/2002 52208015906 ENDED, +core, NoS Shop at ECS Tuning
For vehicles with
Through-loading system
Cover backrest, rear
S465A=Yes
09 Cover backrest leather left CHAMPAGNER 1 11/2002 52208015915 ENDED, +core, NoS Shop at ECS Tuning
09 Cover backrest leather right CHAMPAGNER 1 11/2002 52208015916 ENDED, +core, NoS Shop at ECS Tuning
Side panel
10 Side finisher, leather, left CHAMPAGNER 1 11/2002 52208015917 ENDED, NoS Shop at ECS Tuning
10 Side finisher, leather, right CHAMPAGNER 1 11/2002 52208015918 ENDED, NoS Shop at ECS Tuning
CENTER ARMREST REAR
11 Armrest rear, leather CHAMPAGNER 1 11/2002 52208015907 ENDED, +core, NoS Shop at ECS Tuning
For vehicles with
Through-loading system
CENTER ARMREST REAR
S465A=Yes
11 Armrest rear, leather CHAMPAGNER 1 11/2002 52208015912 ENDED, +core, NoS Shop at ECS Tuning
For vehicles with
Integrated child seats
S469A=Yes
12 Child seat cover in leather CHAMPAGNER 2 11/2002 52208015911 ENDED, NoS Shop at ECS Tuning
13 Seat cover leather CHAMPAGNER 1 11/2002 52208015910 ENDED, NoS Shop at ECS Tuning
For vehicles with
Through-loading system
and
Integrated child seats
S465A=Yes

S469A=Yes
13 Seat cover leather CHAMPAGNER 1 11/2002 52208015914 ENDED, NoS Shop at ECS Tuning
For vehicles with
Comfort seat with memory
Rear panel cover, top
S456A=Yes
14 Upper rear panel CHAMPAGNER 2 11/2002 52102279174 $160.70 ENDED, +core, NoS Shop at ECS Tuning
For vehicles with
Comfort seat with memory
Rear panel cover, bottom
S456A=Yes
15 Lower rear panel CHAMPAGNER 2 11/2002 52102279176 $459.79 ENDED, NoS Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • NoS = No Stock (Part centrally not stocked)
  • +core = plus core charge (possibility of a return of the old part)
