Individual instrument panel, leather for BMW 5 Series E60 525i (2005)

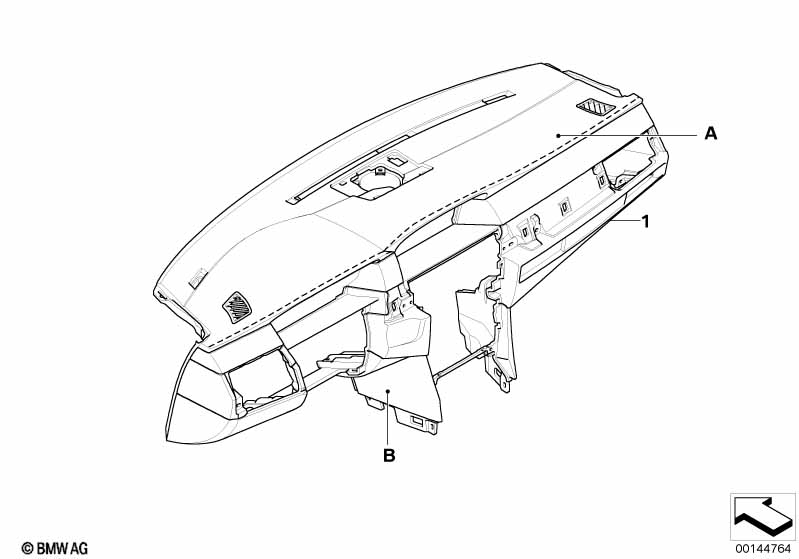

This Individual instrument panel, leather technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) = leather walk nappa black - (B) = colour of bottom part leather --------------------------- Design on upper section: (only in leather, felted nappa) - black . Design of lower section: (only in leather, merino) - black - platinum - ecru light - caramel - champagner - amarone - polargrau - syrah-blue - oxyd-braun --------------------------- For vehicles with Cup holder |
S442A=Yes |
||||||||
| 01 | Trim panel dashboard, leather | INDIVIDUAL | 1 | 09/2004 | 09/2005 | 51458027473 | $803.52 | ENDED, NoS | Shop at ECS Tuning | |
| For vehicles with Head-up display |
S610A=Yes |
|||||||||
| 01 | Trim panel dashboard, leather | INDIVIDUAL | 1 | 09/2004 | 09/2005 | 51458027523 | $803.52 | ENDED, NoS | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
