Individual shift lever cover SMG for BMW 5 Series E61 523i (2007)

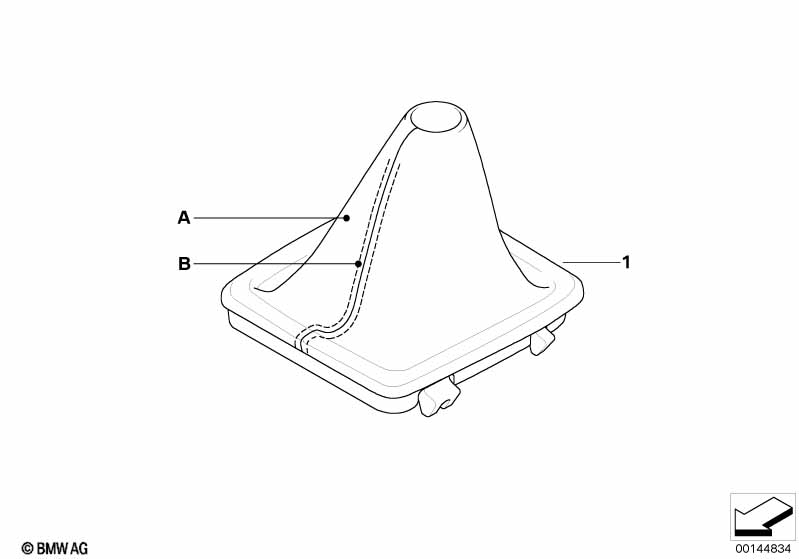

This Individual shift lever cover SMG technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- For vehicles with Sequential manual transmission (SMG) |
S206A=Yes |
||||||||
| 01 | Leather gear lever cover | INDIVIDUAL | 1 | 03/2004 | 03/2007 | 25128028424 | ENDED, +core, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 523i Individual shift lever cover SMG?
- This technical diagram illustrates the Individual shift lever cover SMG within the Individual equipment group for the 5 Series E61 523i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Leather gear lever cover (Part #25128028424).
- Which models use the hardware listed in this Individual shift lever cover SMG?
- The hardware and components featured in the Individual shift lever cover SMG are specific to the 5 Series E61 523i produced during 2007. These technical specifications ensure that parts like the Leather gear lever cover (25128028424) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual shift lever cover SMG assembly?
- Each item in the Individual shift lever cover SMG corresponds to the numbered list below the illustration. For the 5 Series E61 523i, you can identify the Leather gear lever cover by locating its position on the schematic, which then links to the official BMW part number 25128028424 for the Individual equipment section.
