Individual handbrake lever and cover for BMW 5 Series E60 545i (2005)

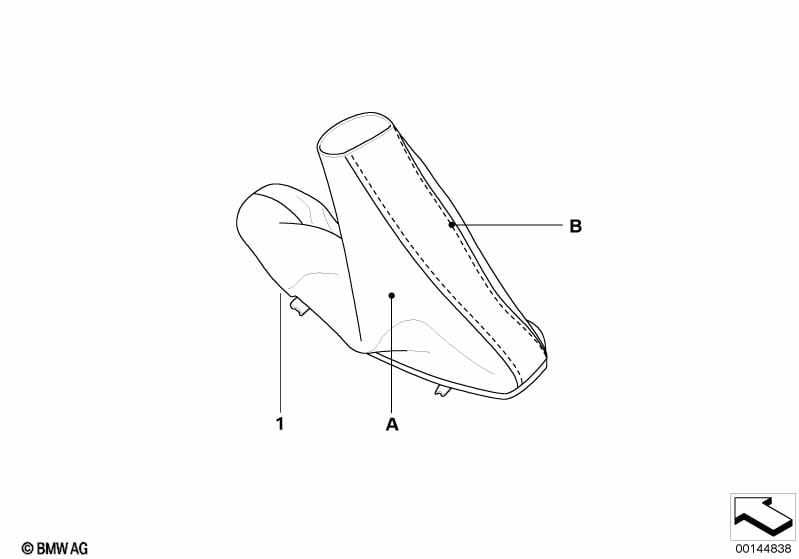

This Individual handbrake lever and cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 545i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.

Individual handbrake lever and cover
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Only applies to
individual vehicles with upholstery
code Z1XX
or
SA 940 = option in general
----------------------------------
Important!
Series parts are not possible via this
order no.
.
Since individual vehicles are also
equipped with series parts, it is to be
assured that the spare part needed is
not a series part.
----------------------------------------
Specify when ordering:
.
Spare part for individual vehicle:
- part no.
- dealer no.
- chassis no.
.
Retrofit of an individual part:
- part. no.
- dealer no.
-chassis no.
- (A) Part no. leather
- (B) Colour of thread = matching
---------------------------
01 Leather handbrake lever cover INDIVIDUAL 1 03/2004 34428028443 $56.92 ENDED, +core, NoS Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • NoS = No Stock (Part centrally not stocked)
