Individual headrest, leather, rear for BMW 6 Series E64 LCI 650i (2010)

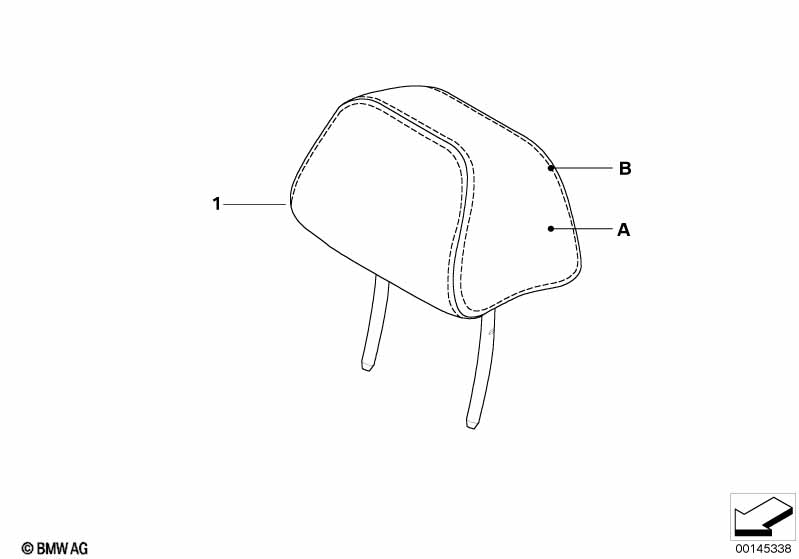

This Individual headrest, leather, rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- Version: only in leather Merino --------------------------- |
|||||||||
| 01 | Headrest leather | INDIVIDUAL | 2 | 09/2004 | 52208030972 | $453.10 | NoS | Shop at ECS Tuning | ||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 LCI 650i Individual headrest, leather, rear?
- This technical diagram illustrates the Individual headrest, leather, rear within the Individual equipment group for the 6 Series E64 LCI 650i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Headrest leather (Part #52208030972).
- Which models use the hardware listed in this Individual headrest, leather, rear?
- The hardware and components featured in the Individual headrest, leather, rear are specific to the 6 Series E64 LCI 650i produced during 2010. These technical specifications ensure that parts like the Headrest leather (52208030972) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual headrest, leather, rear assembly?
- Each item in the Individual headrest, leather, rear corresponds to the numbered list below the illustration. For the 6 Series E64 LCI 650i, you can identify the Headrest leather by locating its position on the schematic, which then links to the official BMW part number 52208030972 for the Individual equipment section.
