Individual wood, walnut, amarone for BMW 6 Series E64 LCI 635d (2010)

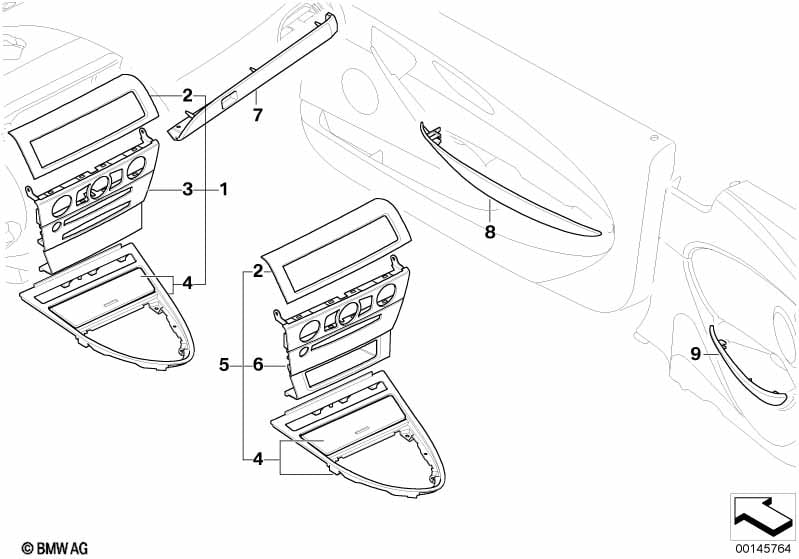

This Individual wood, walnut, amarone technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 635d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- |
|||||||||
| For vehicles with TV function or Navigation system Professional |
S601A=Yes S609A=Yes |
|||||||||
| 01 | Set of wooden covers | NUßBAUM AMARONE | 1 | 09/2008 | 51457960171 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Decor panel, fresh air grille, center | NUßBAUM AMARONE | 1 | 09/2004 | 64228029036 | $279.00 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with TV function or Navigation system Professional |
S601A=Yes S609A=Yes |
|||||||||
| 03 | Decor cover for instrument panel, center | NUßBAUM AMARONE | 1 | 09/2008 | 51457960145 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Decor panel for centre console | NUßBAUM AMARONE | 1 | 09/2007 | 51457970651 | $420.57 | ENDED, NoS | Shop at ECS Tuning | ||
| 05 | Set of wooden covers | NUßBAUM AMARONE | 1 | 09/2007 | 51457970669 | $1145.12 | ENDED, NoS | Shop at ECS Tuning | ||
| 06 | Decor cover for instrument panel, center | NUßBAUM AMARONE | 1 | 09/2007 | 51457970650 | $405.09 | ENDED, NoS | Shop at ECS Tuning | ||
| 07 | Decorative strip, dashboard right | NUßBAUM AMARONE | 1 | 09/2004 | 51458028866 | $229.76 | +core, NoS | Shop at ECS Tuning | ||
| 08 | Decorative strip, door front left | NUßBAUM AMARONE | 1 | 09/2004 | 51418028855 | $206.30 | ENDED, NoS | Shop at ECS Tuning | ||
| 08 | Decorative strip, door front right | NUßBAUM AMARONE | 1 | 09/2004 | 51418028856 | $206.30 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 09 | Decorative strip trim panel, rear left | NUßBAUM AMARONE | 1 | 09/2004 | 51438028861 | $177.41 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 09 | Decorative strip trim panel, rear right | NUßBAUM AMARONE | 1 | 09/2004 | 51438028862 | $177.41 | ENDED, +core, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
