Individual trim "Edition 33" for BMW 3 Series E46 320d (2005)

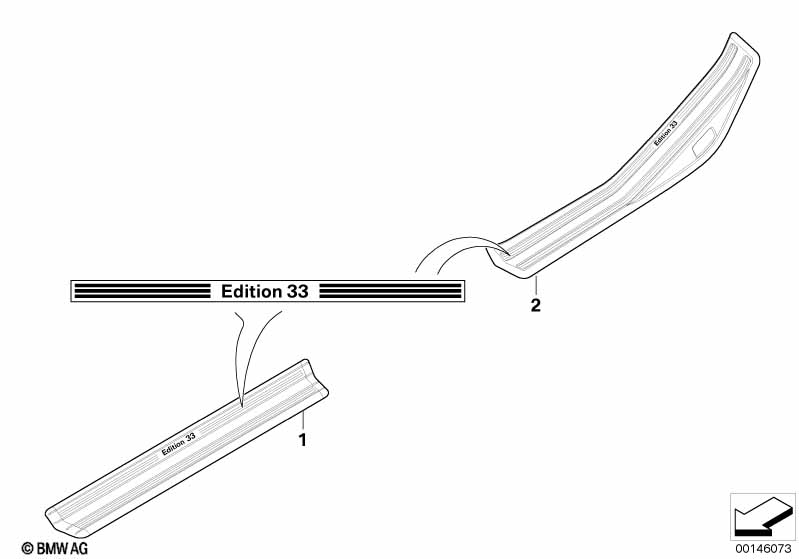

This Individual trim "Edition 33" technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 |
|||||||||
| 01 | Front entrance cover | EDITION 33 | 2 | 07/2004 | 51478031196 | $143.96 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Rear left entrance cover | EDITION 33 | 1 | 07/2004 | 51478031165 | $143.96 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Rear right entrance cover | EDITION 33 | 1 | 07/2004 | 51478031166 | $143.96 | ENDED, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320d Individual trim "Edition 33"?
- This technical diagram illustrates the Individual trim "Edition 33" within the Individual equipment group for the 3 Series E46 320d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Front entrance cover (Part #51478031196).
- Which models use the hardware listed in this Individual trim "Edition 33"?
- The hardware and components featured in the Individual trim "Edition 33" are specific to the 3 Series E46 320d produced during 2005. These technical specifications ensure that parts like the Front entrance cover (51478031196) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual trim "Edition 33" assembly?
- Each item in the Individual trim "Edition 33" corresponds to the numbered list below the illustration. For the 3 Series E46 320d, you can identify the Front entrance cover by locating its position on the schematic, which then links to the official BMW part number 51478031196 for the Individual equipment section.
