Indiv. leather gear shift knob 6-speed for BMW 3 Series E46 330Cd (2006)

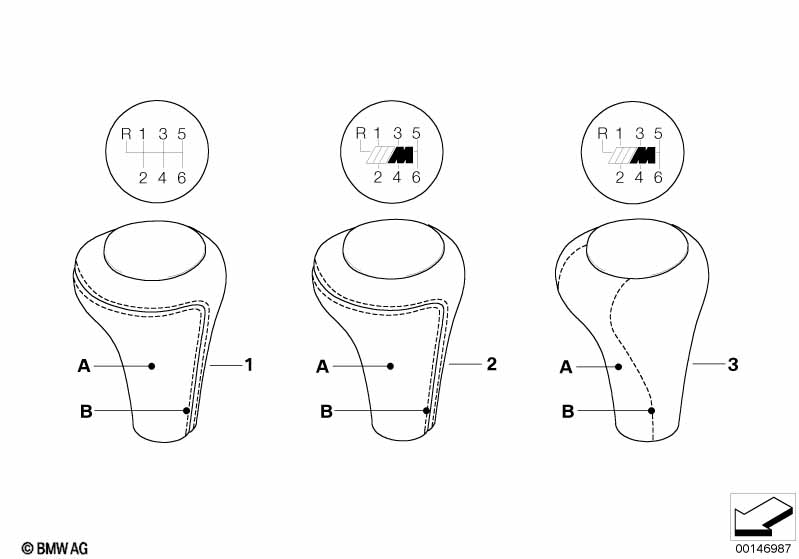

This Indiv. leather gear shift knob 6-speed technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching |
|||||||||
| 01 | Gearshift knob, leather/6-speed | 1 | 03/2002 | 25118026097 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with M leather steering wheel |
S710A=Yes |
|||||||||
| 02 | Gearshift knob,leather/M plaque/6-speed | 1 | 03/2002 | 25118026099 | $72.54 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with M Sports package II or Interior moldings Alu Silver Cube or Interior moldings Alu Black Cube |
S338A=Yes S770A=Yes S772A=Yes |
|||||||||
| 03 | Gearshift knob,leather/M plaque/6-speed | SHORTSHIFT | 1 | 03/2002 | 25118026360 | $72.54 | ENDED, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Cd Indiv. leather gear shift knob 6-speed?
- This technical diagram illustrates the Indiv. leather gear shift knob 6-speed within the Individual equipment group for the 3 Series E46 330Cd produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Gearshift knob, leather/6-speed (Part #25118026097).
- Which models use the hardware listed in this Indiv. leather gear shift knob 6-speed?
- The hardware and components featured in the Indiv. leather gear shift knob 6-speed are specific to the 3 Series E46 330Cd produced during 2006. These technical specifications ensure that parts like the Gearshift knob, leather/6-speed (25118026097) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Indiv. leather gear shift knob 6-speed assembly?
- Each item in the Indiv. leather gear shift knob 6-speed corresponds to the numbered list below the illustration. For the 3 Series E46 330Cd, you can identify the Gearshift knob, leather/6-speed by locating its position on the schematic, which then links to the official BMW part number 25118026097 for the Individual equipment section.
