Individual moulded headliner, Alcantara for BMW 5 Series E60 LCI 525i (2009)

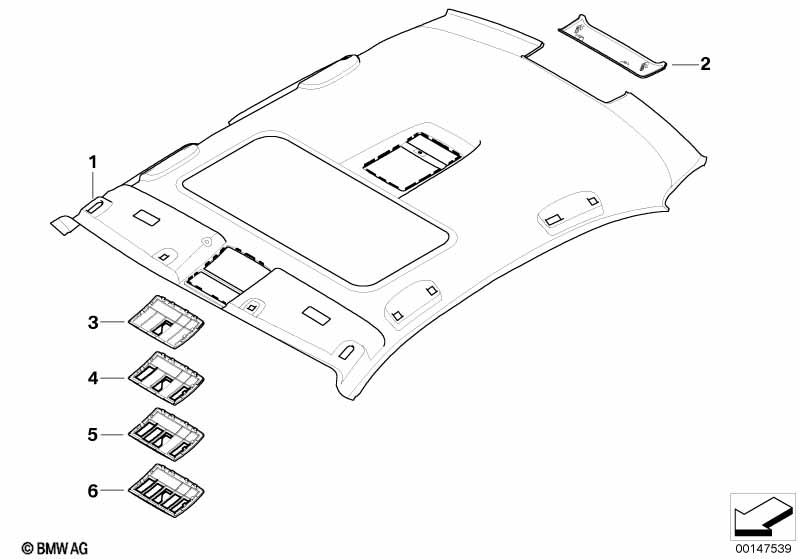

This Individual moulded headliner, Alcantara technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- |
|||||||||
| 01 | Molded roof lining | ALCANTARA ANTH. | 1 | 03/2004 | 51447897626 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Molded roof lining | PLATIN | 1 | 03/2004 | 51448026781 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded roof lining | ECRU | 1 | 03/2004 | 51448026782 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded roof lining | CARAMEL | 1 | 03/2004 | 51448032371 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 01 | Molded headlining f sliding lifting roof | ANTHRAZIT | 1 | 03/2004 | 51447897620 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Molded headlining f sliding lifting roof | PLATIN | 1 | 03/2004 | 51448026783 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded headlining f sliding lifting roof | ECRU | 1 | 03/2004 | 51448026784 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded headlining f sliding lifting roof | CARAMEL | 1 | 03/2004 | 51448032372 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover, stop lamp | ANTHRAZIT | 1 | 03/2004 | 51447897530 | $44.56 | +core | Shop at ECS Tuning | ||
| 02 | Cover, stop lamp | PLATIN | 1 | 03/2004 | 51448026913 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover, stop lamp | ECRU | 1 | 03/2004 | 51448026914 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover, stop lamp | CARAMEL | 1 | 03/2004 | 51448032389 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 03 | Front headlining cover | ANTHRAZIT | 1 | 03/2004 | 51447897799 | $21.40 | +core | Shop at ECS Tuning | ||
| 03 | Front headlining cover | PLATIN | 1 | 03/2004 | 51448026937 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Front headlining cover | ECRU | 1 | 03/2004 | 51448026938 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Front headlining cover | CARAMEL | 1 | 03/2004 | 51448032392 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 04 | Front headlining cover | ANTHRAZIT | 1 | 03/2004 | 51447897801 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Front headlining cover | PLATIN | 1 | 03/2004 | 51448026939 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 04 | Front headlining cover | ECRU | 1 | 03/2004 | 51448026940 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 04 | Front headlining cover | CARAMEL | 1 | 03/2004 | 51448032393 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Front headlining cover | ANTHRAZIT | 1 | 03/2004 | 51447897803 | $21.40 | +core | Shop at ECS Tuning | ||
| 05 | Front headlining cover | PLATIN | 1 | 03/2004 | 51448026941 | $25.13 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 05 | Front headlining cover | ECRU | 1 | 03/2004 | 51448026942 | $25.13 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 05 | Front headlining cover | CARAMEL | 1 | 03/2004 | 51448032394 | $25.13 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 06 | Front headlining cover | ANTHRAZIT | 1 | 03/2004 | 51447897805 | $21.40 | +core | Shop at ECS Tuning | ||
| 06 | Front headlining cover | PLATIN | 1 | 03/2004 | 51448026943 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Front headlining cover | ECRU | 1 | 03/2004 | 51448026944 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
