Individual sun visor, Alcantara for BMW 5 Series E61 LCI 520d (2008)

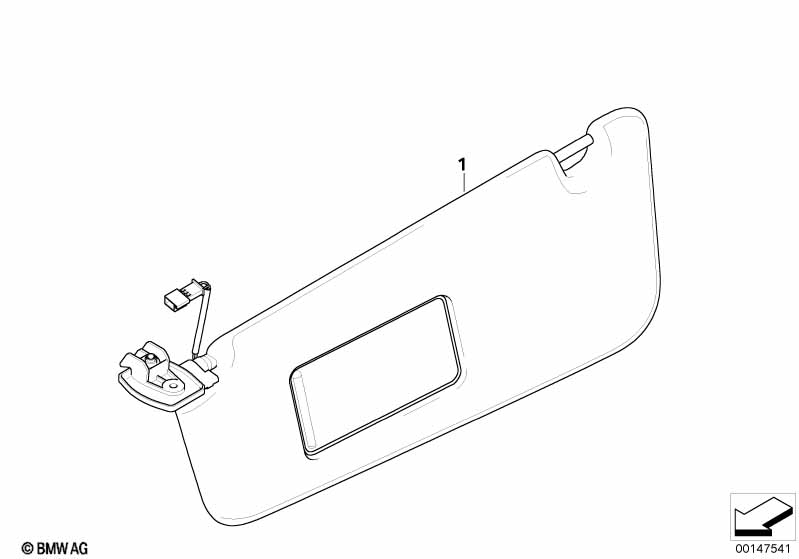

This Individual sun visor, Alcantara technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- |
|||||||||
| 01 | Sun visor/mirror illuminated left | ANTHRAZIT | 1 | 03/2004 | 51167897651 | ENDED | Shop at ECS Tuning | |||
| 01 | Sun visor/mirror illuminated right | ANTHRAZIT | 1 | 03/2004 | 51167897652 | +core | Shop at ECS Tuning | |||
| 01 | Sun visor/mirror illuminated left | PLATIN | 1 | 03/2004 | 51168026789 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Sun visor/mirror illuminated right | PLATIN | 1 | 03/2004 | 51168026790 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Sun visor/mirror illuminated left | ECRU | 1 | 03/2004 | 51168026791 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Sun visor/mirror illuminated right | ECRU | 1 | 03/2004 | 51168026792 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Sun visor/mirror illuminated left | CARAMEL | 1 | 03/2004 | 51168032375 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Sun visor/mirror illuminated right | CARAMEL | 1 | 03/2004 | 51168032376 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
