Individual moulded headliner, Alcantara for BMW 5 Series E61 530d (2005)

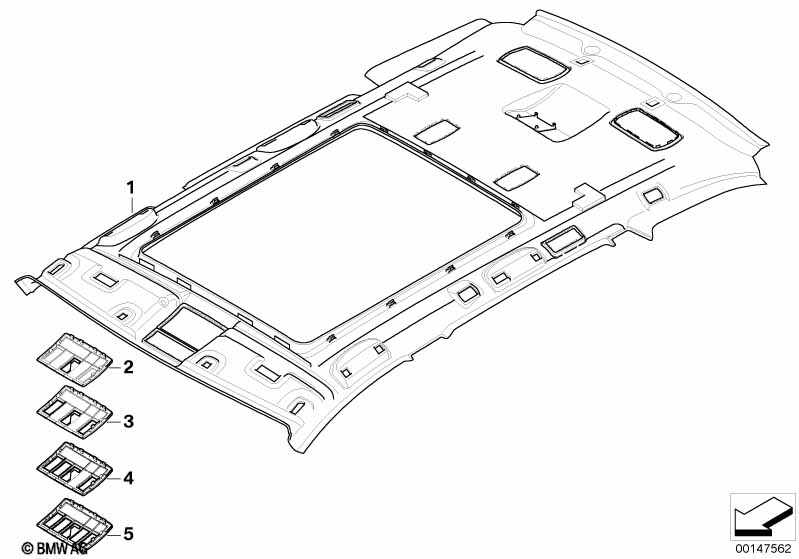

This Individual moulded headliner, Alcantara technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- |
|||||||||
| 01 | Molded roof lining | PLATIN | 1 | 09/2004 | 51448030816 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded roof lining | ECRU | 1 | 09/2004 | 51448030817 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded roof lining | CARAMEL | 1 | 09/2004 | 51448032398 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded roof lining | ANTHRAZIT | 1 | 09/2004 | 51448042557 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 01 | Molded roof lining f panoramic roof | ANTHRAZIT | 1 | 09/2004 | 51448030818 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded roof lining f panoramic roof | PLATIN | 1 | 09/2004 | 51448030819 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded roof lining f panoramic roof | ECRU | 1 | 09/2004 | 51448030860 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded roof lining f panoramic roof | CARAMEL | 1 | 09/2004 | 51448032399 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Alarm system and Electric panoramic roof |
S302A=Yes S402A=Yes |
|||||||||
| 01 | Molded roof lining f panoramic roof | PLATIN | 1 | 09/2004 | 51448030864 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded roof lining f panoramic roof | ECRU | 1 | 09/2004 | 51448030865 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded roof lining f panoramic roof | CARAMEL | 1 | 09/2004 | 51448032400 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Molded roof lining f panoramic roof | ANTHRAZIT | 1 | 09/2004 | 51448042552 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 02 | Front headlining cover | ANTHRAZIT | 1 | 09/2004 | 51447897799 | $21.40 | +core | Shop at ECS Tuning | ||
| 02 | Front headlining cover | PLATIN | 1 | 09/2004 | 51448026937 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Front headlining cover | ECRU | 1 | 09/2004 | 51448026938 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Front headlining cover | CARAMEL | 1 | 09/2004 | 51448032392 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Electric panoramic roof and Provisions for telephone installation |
S402A=Yes =Yes |
|||||||||
| 03 | Front headlining cover | ANTHRAZIT | 1 | 09/2004 | 51447897801 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Front headlining cover | PLATIN | 1 | 09/2004 | 51448026939 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Front headlining cover | ECRU | 1 | 09/2004 | 51448026940 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Front headlining cover | CARAMEL | 1 | 09/2004 | 51448032393 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Electric panoramic roof or Preparation, mobile phone, Business |
S402A=Yes S633A=Yes |
|||||||||
| 04 | Front headlining cover | ANTHRAZIT | 1 | 09/2004 | 51447897803 | $21.40 | +core | Shop at ECS Tuning | ||
| 04 | Front headlining cover | PLATIN | 1 | 09/2004 | 51448026941 | $25.13 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 04 | Front headlining cover | ECRU | 1 | 09/2004 | 51448026942 | $25.13 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 04 | Front headlining cover | CARAMEL | 1 | 09/2004 | 51448032394 | $25.13 | ENDED, +core, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
