Individual slide/tilt sunroof for BMW 5 Series E61 LCI 530d (2010)

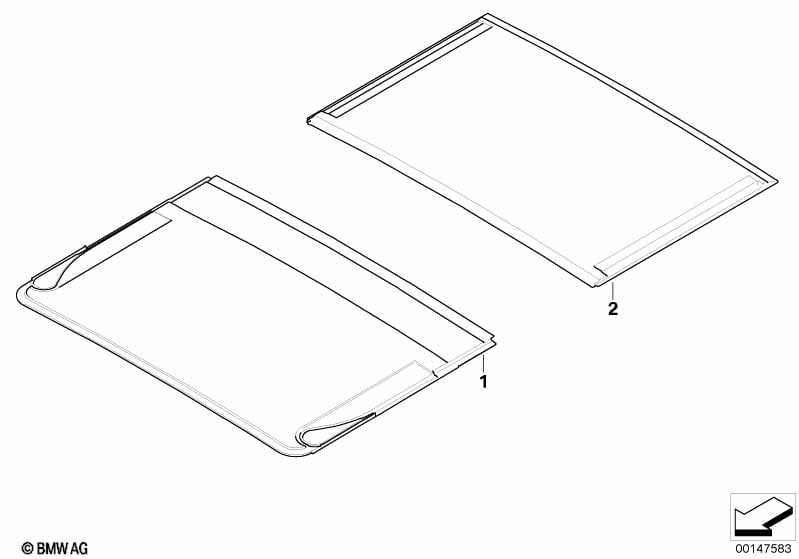

This Individual slide/tilt sunroof technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- |
|||||||||
| For vehicles with Electric panoramic roof and Alcantara artificial leather |
S402A=Yes =Yes |
|||||||||
| 01 | Supended headliner, front | PLATIN | 1 | 09/2004 | 54138030871 | $310.25 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Supended headliner, front | ECRU | 1 | 09/2004 | 54138030873 | $310.25 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Supended headliner, front | CARAMEL | 1 | 09/2004 | 54138032403 | $310.25 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Sunroof headliner, Alcantara, front | ANTHRAZIT | 1 | 09/2004 | 54138042559 | $282.10 | ENDED | Shop at ECS Tuning | ||
| 02 | Supended headliner, rear | PLATIN | 1 | 09/2004 | 54138030872 | $362.70 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Supended headliner, rear | ECRU | 1 | 09/2004 | 54138030874 | $362.70 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Supended headliner, rear | CARAMEL | 1 | 09/2004 | 54138032404 | $362.70 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Sunroof headliner, Alcantara, rear | ANTHRAZIT | 1 | 09/2004 | 54138042560 | $327.26 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
