Individual A, B, C pillar covers, top for BMW 5 Series E61 525xi (2007)

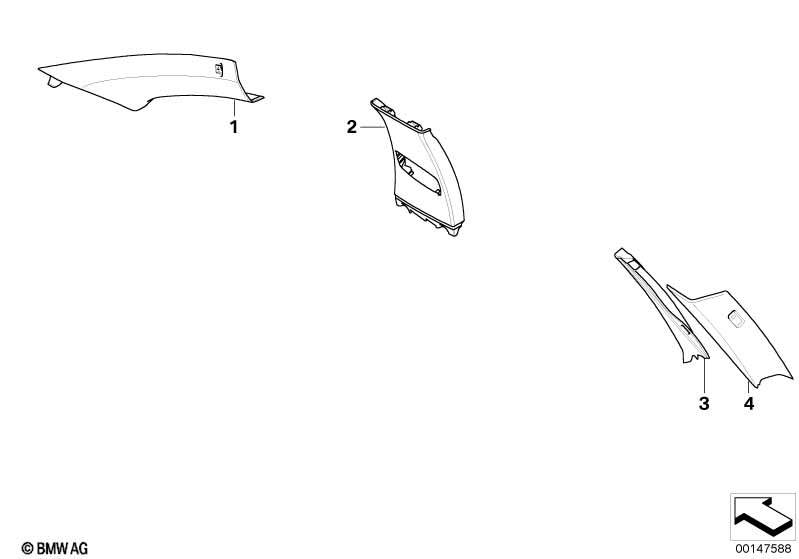

This Individual A, B, C pillar covers, top technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- |
|||||||||
| Alcantara artificial leather | ||||||||||
| 01 | Left column A cover | ANTHRAZIT | 1 | 09/2004 | 51437897631 | $57.45 | +core | Shop at ECS Tuning | ||
| 01 | Right column A cover | ANTHRAZIT | 1 | 09/2004 | 51437897632 | $57.45 | +core | Shop at ECS Tuning | ||
| 01 | Left column A cover | PLATIN | 1 | 09/2004 | 51438026915 | $63.61 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Right column A cover | PLATIN | 1 | 09/2004 | 51438026916 | $63.61 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Left column A cover | ECRU | 1 | 09/2004 | 51438026917 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Right column A cover | ECRU | 1 | 09/2004 | 51438026918 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Left column A cover | CARAMEL | 1 | 09/2004 | 51438032381 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Right column A cover | CARAMEL | 1 | 09/2004 | 51438032382 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover, B-column upper left | ANTHRAZIT | 1 | 09/2004 | 51438033249 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover, B-column upper right | ANTHRAZIT | 1 | 09/2004 | 51438033250 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover, B-column upper left | PLATIN | 1 | 09/2004 | 51438033251 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover, B-column upper right | PLATIN | 1 | 09/2004 | 51438033252 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover, B-column upper left | ECRU | 1 | 09/2004 | 51438033253 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover, B-column upper right | ECRU | 1 | 09/2004 | 51438033254 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover, B-column upper left | CARAMEL | 1 | 09/2004 | 51438033255 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Cover, B-column upper right | CARAMEL | 1 | 09/2004 | 51438033256 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Trim panel C-column, front left | PLATIN | 1 | 09/2004 | 51438030879 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Trim panel C-column, front right | PLATIN | 1 | 09/2004 | 51438030880 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Trim panel C-column, front left | ECRU | 1 | 09/2004 | 51438030883 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Trim panel C-column, front right | ECRU | 1 | 09/2004 | 51438030884 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Trim panel C-column, front left | CARAMEL | 1 | 09/2004 | 51438032405 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Trim panel C-column, front right | CARAMEL | 1 | 09/2004 | 51438032406 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Trim panel C-column, front left | ANTHRAZIT | 1 | 09/2004 | 51438042553 | $50.54 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Trim panel C-column, front right | ANTHRAZIT | 1 | 09/2004 | 51438042554 | $50.54 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel C-column, rear left | PLATIN | 1 | 09/2004 | 51438030881 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 04 | Trim panel C-column, rear right | PLATIN | 1 | 09/2004 | 51438030882 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 04 | Trim panel C-column, rear left | ECRU | 1 | 09/2004 | 51438030885 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 04 | Trim panel C-column, rear right | ECRU | 1 | 09/2004 | 51438030886 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 04 | Trim panel C-column, rear left | CARAMEL | 1 | 09/2004 | 51438032407 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 04 | Trim panel C-column, rear right | CARAMEL | 1 | 09/2004 | 51438032408 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 04 | Trim panel C-column, rear left | ANTHRAZIT | 1 | 09/2004 | 51438042555 | $49.37 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel C-column, rear right | ANTHRAZIT | 1 | 09/2004 | 51438042556 | $49.37 | ENDED, +core | Shop at ECS Tuning | ||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
