Ind.trim piece f head-up display,leather for BMW 5 Series E60 525d (2007)

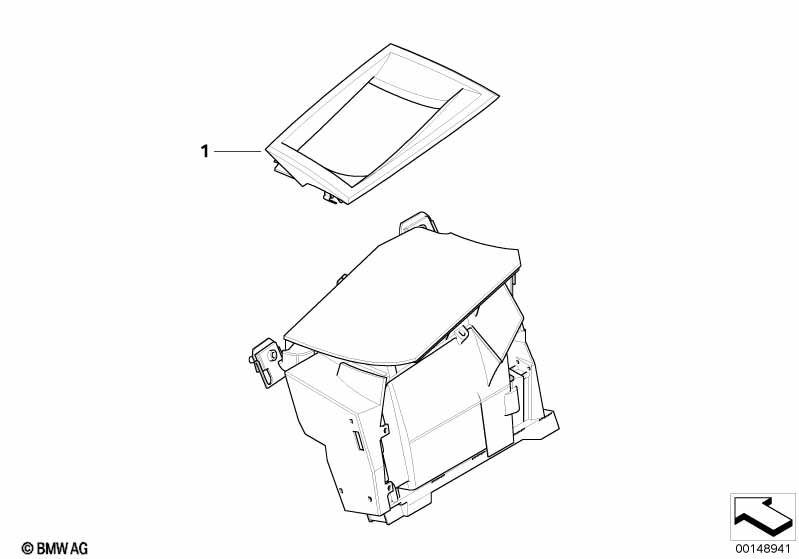

This Ind.trim piece f head-up display,leather technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- For vehicles with Head-up display |
S610A=Yes |
||||||||
| All leather equipment | ||||||||||
| 01 | Trim piece for head-up display, leather | SCHWARZ | 1 | 62308040887 | Shop at ECS Tuning | |||||
