Indiv.cover, basic seat, front for BMW 3 Series E90 320d (2007)

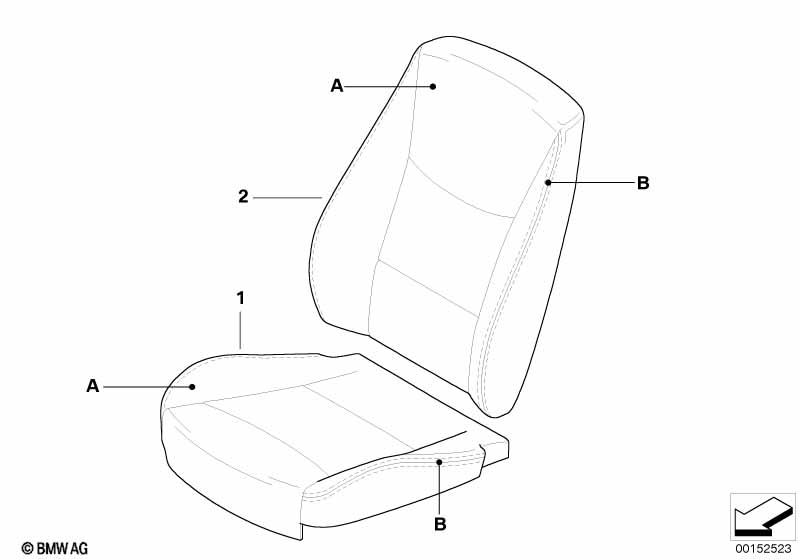

This Indiv.cover, basic seat, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) color spec. for twist.quilt. yarn WITHOUT Heater |
|||||||||
| without heater element | ||||||||||
| 01 | Seat cover, basic seat, leather | INDIVIDUAL | 2 | 09/2005 | 09/2008 | 52107962315 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Isofix-System without heater element |
S470A=Yes |
|||||||||
| 01 | Seat cover, basic seat, leather | INDIVIDUAL | 1 | 09/2005 | 09/2008 | 52107962316 | ENDED, NoS | Shop at ECS Tuning | ||
| without heater element | ||||||||||
| 02 | Backrest cover, basic seat, leather,left | INDIVIDUAL | 1 | 09/2005 | 09/2008 | 52107962313 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Backrest cover,basic seat, leather,right | INDIVIDUAL | 1 | 09/2005 | 09/2008 | 52107962314 | ENDED, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
