Indiv.cover basic seat, rear for BMW 3 Series E90 LCI 320d (2011)

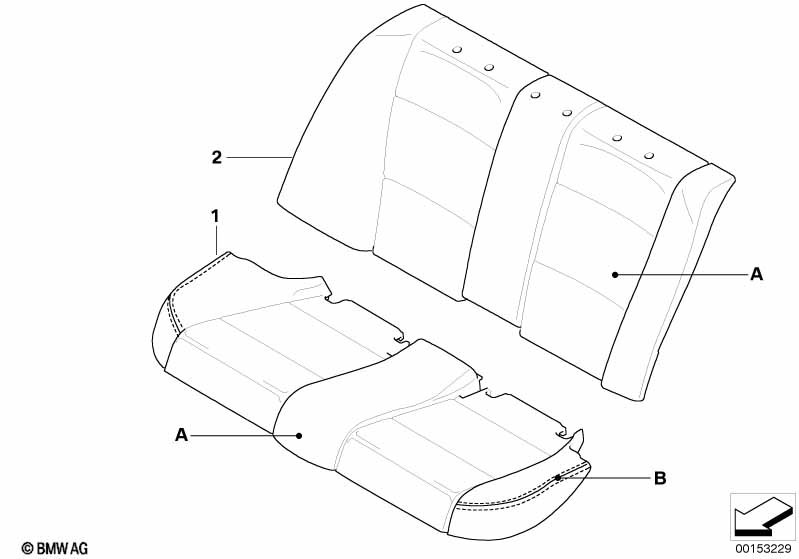

This Indiv.cover basic seat, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) color spec. for twist.quilt. yarn For vehicles with basic seat (standard seat) |
=Yes |
||||||||
| 01 | Leather seat cover, rear | INDIVIDUAL | 1 | 09/2005 | 52207962322 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather, rear | INDIVIDUAL | 1 | 09/2005 | 52207962323 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320d Indiv.cover basic seat, rear?
- This technical diagram illustrates the Indiv.cover basic seat, rear within the Individual equipment group for the 3 Series E90 LCI 320d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Leather seat cover, rear (Part #52207962322).
- Which models use the hardware listed in this Indiv.cover basic seat, rear?
- The hardware and components featured in the Indiv.cover basic seat, rear are specific to the 3 Series E90 LCI 320d produced during 2011. These technical specifications ensure that parts like the Leather seat cover, rear (52207962322) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Indiv.cover basic seat, rear assembly?
- Each item in the Indiv.cover basic seat, rear corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320d, you can identify the Leather seat cover, rear by locating its position on the schematic, which then links to the official BMW part number 52207962322 for the Individual equipment section.
