Indi. rear panel rear seat Infotainment for BMW 7 Series E65 745d (2008)

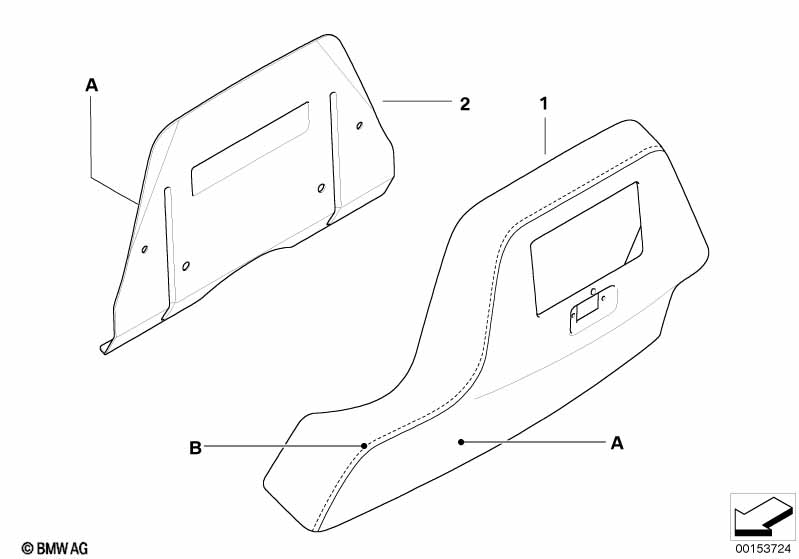

This Indi. rear panel rear seat Infotainment technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- For vehicles with Individual R.S. Infotainment and Comfort seat with memory |
SXABA=Yes S456A=Yes |
||||||||
| Leather trim | ||||||||||
| 01 | Rear wall monitor top | INDIVIDUAL | 2 | 11/2004 | 52107966056 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Seat carrier, front | INDIVIDUAL | 2 | 11/2004 | 52107966057 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
