Indi. mount.parts rear seat Infotainment for BMW 7 Series E66 760Li (2008)

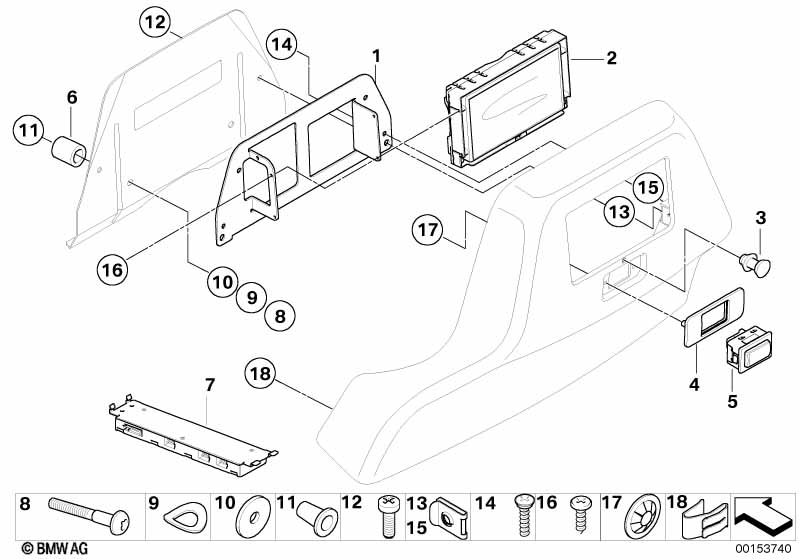

This Indi. mount.parts rear seat Infotainment technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- For vehicles with Individual R.S. Infotainment and Comfort seat with memory |
SXABA=Yes S456A=Yes |
||||||||
| 01 | Monitor holder | 2 | 11/2004 | 52108033259 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 02 | On-board monitor, rear left | 6,5" | 1 | 11/2004 | 65820306747 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | On-board monitor, rear right | 6,5" | 1 | 11/2004 | 65820306748 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Lens | 2 | 11/2004 | 65508033299 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Cover, switch RSI | 2 | 11/2004 | 52108033257 | ENDED, NoS | Shop at ECS Tuning | ||||
| 05 | Switch RSI | 2 | 11/2004 | 61318030820 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Spacer sleeve | 4 | 11/2004 | 52108033258 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | LVDS - Splitter | 1 | 03/2005 | 65508030956 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 08 | Torx bolt | M6 | 4 | 11/2004 | 52108033339 | ENDED, NoS | Shop at ECS Tuning | |||
| 09 | Wave washer | B6 | 4 | 11/2004 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 10 | Washer | 7X29X2 | 4 | 11/2004 | 51436440260 | $0.39 | Shop at ECS Tuning | |||
| 11 | Riveted nut | M6 | 4 | 11/2004 | 46512331720 | $1.42 | Shop at ECS Tuning | |||
| 12 | Fillister head screw | M5X20 | 4 | 11/2004 | 46637651349 | $1.58 | ENDED | Shop at ECS Tuning | ||
| 13 | Body nut | M5 | 4 | 11/2004 | 52108033343 | ENDED, NoS | Shop at ECS Tuning | |||
| 14 | Csk.lenshead screw | 4,2 X 16 | 8 | 11/2004 | 52108033344 | ENDED, NoS | Shop at ECS Tuning | |||
| 15 | Body nut | ST4,2-1-ZNS3 | 8 | 11/2004 | 07129904220 | $0.09 | Shop at ECS Tuning | |||
| 16 | Fillister head self-tapping screw | 2,5 X 9,5 | 8 | 11/2004 | 52108033338 | ENDED, NoS | Shop at ECS Tuning | |||
| 17 | Spring nut | 4 | 11/2004 | 64111364257 | $0.62 | Shop at ECS Tuning | ||||
| 18 | Clip, trim panel, bottom | 4 | 11/2004 | 52108175058 | $3.11 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
