Individual cover, Sport seat, front LC for BMW 5 Series E60 LCI 535d (2009)

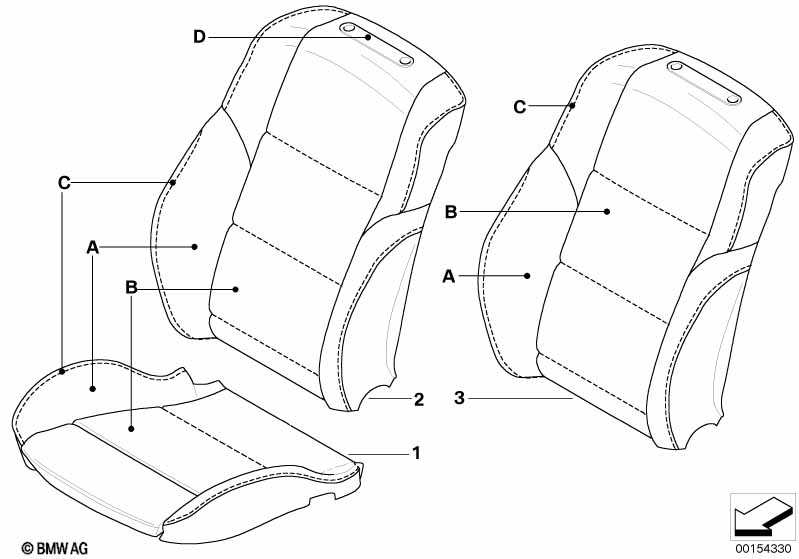

This Individual cover, Sport seat, front LC technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Part number leather (for bicolor) - (C) Color of thread = matching - (D) Color of cover --------------------------- Version: only in leather Dakota Seam pattern = LC --------------------------- Finishers available in - black --------------------------- Version with seat heating (also suitable for vehicles without seat heating) --------------------------- For vehicles with Sports seat |
S481A=Yes |
||||||||
| 01 | Cover, sports seat, leather | LC | 2 | 09/2005 | 52107964342 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 02 | Cover, backrest, sports seat, leather | LC | 2 | 09/2005 | 52107964346 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory |
S459A=No |
|||||||||
| 03 | Cover, backrest, sports seat, leather | LC | 2 | 09/2005 | 52107964344 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
