Indiv. load-through for seat, rear, LC for BMW 5 Series E60 LCI 525d (2009)

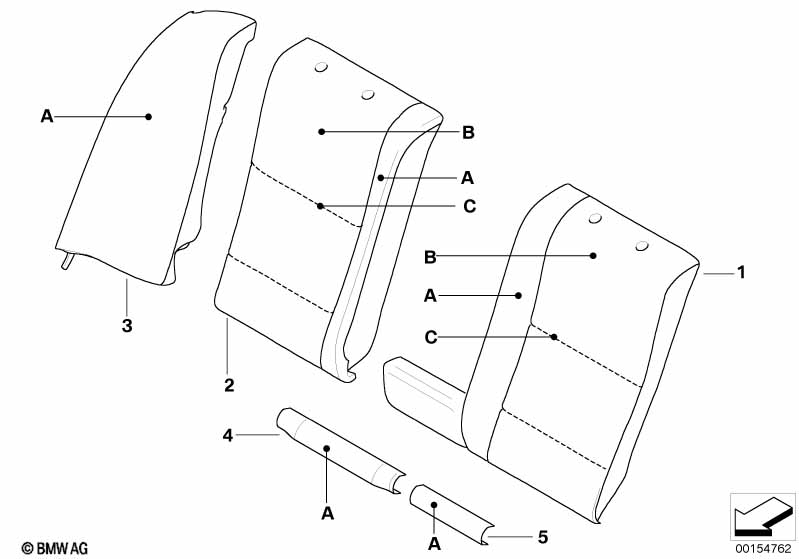

This Indiv. load-through for seat, rear, LC technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part No. leather - (B) Part No. leather (with bicolor) - (C) Color of thread = matching --------------------------- Version: only in leather Dakota Seam pattern = LC --------------------------- Version with seat heating (also suitable for vehicles without seat heating) --------------------------- For vehicles with Through-loading system or Coolbox |
S465A=Yes S791A=Yes |
||||||||
| 01 | Cover backrest, leather, rear left | LC | 1 | 08/2005 | 52207964357 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather, rear right | LC | 1 | 08/2005 | 52207964358 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
