Individual parking brake lever boot for BMW 3 Series E90 LCI 320i (2011)

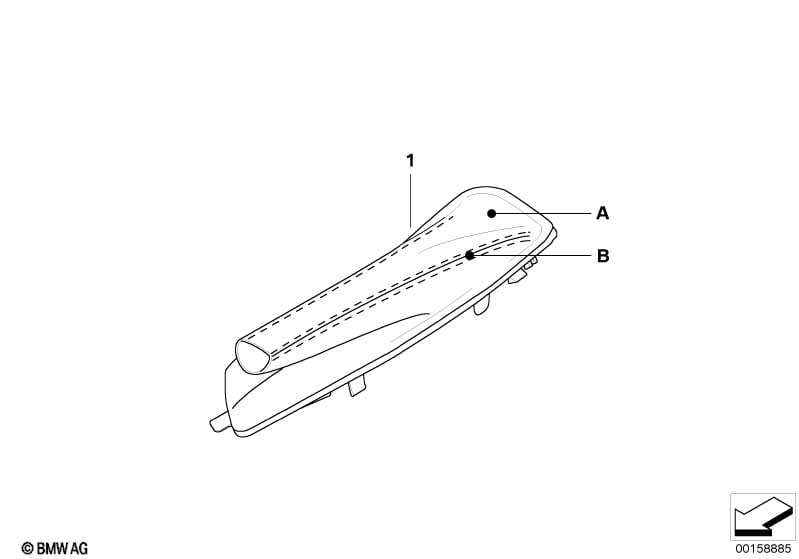

This Individual parking brake lever boot technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching |
|||||||||
| 01 | Leather handbrake lever cover | INDIVIDUAL | 1 | 09/2005 | 34427961297 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
