Indiv. clip for door handle, inside rear for BMW 3 Series E90 325xi (2008)

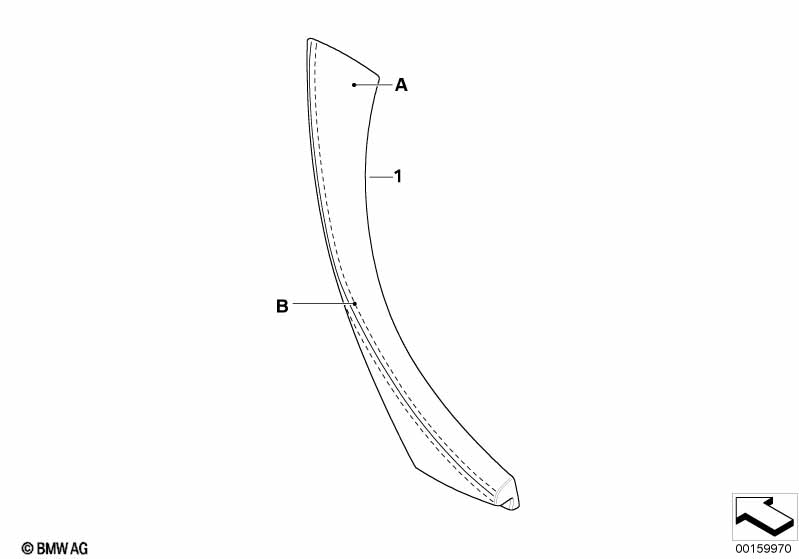

This Indiv. clip for door handle, inside rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------------- Important! Components from series production are not available through this order no. . Series components are also installed on Individual vehicles. Always confirm in advance that the required replacement component is not a standard series component. . The door handle grips in the version with standard seam correspond to the standard series part in the matching color and, if possible, should not be ordered using the Individual detail no. ---------------------------------------- The specific data entries required when placing the order vary according to the specific requirement. . Spare part for Individual vehicle: - Part number - Dealer number - VIN . Retrofitting an Individual part: - Part number - Dealer number - VIN - (A) Part no. leather - (B) Colour of thread = matching --------------------------- Clip at rear, also suitable for 2 door trim, front passenger. --------------------------- |
|||||||||
| only fits door trim panel with Door closing handle with two reinforcement braces |
||||||||||
| 01 | Clasp, inside door handle, left | INDIVIDUAL | 1 | 09/2005 | 51417973135 | $79.92 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Clasp, inside door handle, right | INDIVIDUAL | 1 | 09/2005 | 51417973136 | $79.92 | ENDED, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
