Indi. door trim, all-leather, front for BMW 3 Series E91 335xi (2008)

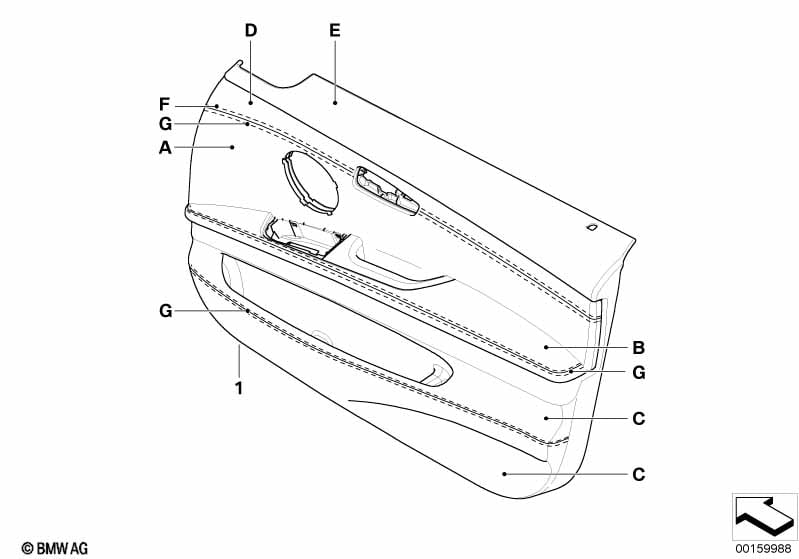

This Indi. door trim, all-leather, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 335xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number for leather Merino (center) - (B) Part number for leather Merino (armrest) - (C) Part number for leather Merino (map pocket, outside) - (D) Part number leather Merino (cowl) - (E) Part number leather Walknappa non-shrink (door waist rail) - (F) Velours (cowl on upper trim) - (G) Velours --------------------------- Remaining door trim as LCSW --------------------------- |
|||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 09/2005 | 51417966017 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 09/2005 | 51417966018 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 09/2005 | 51417969223 | $1336.12 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 09/2005 | 51417969224 | $1336.12 | ENDED, +core, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
