Indi. door trim, all-leather, rear for BMW 3 Series E90 LCI 325i (2011)

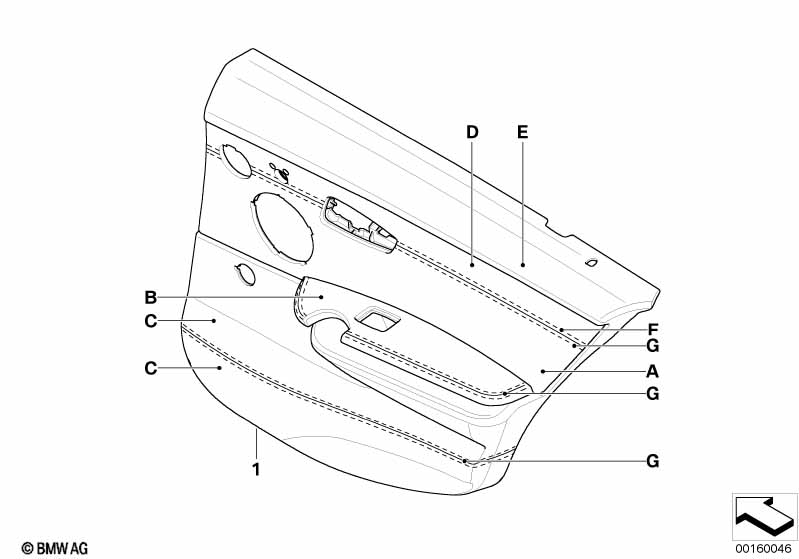

This Indi. door trim, all-leather, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number Merino leather (center) - (B) Part number Merino leather (armrest) - (C) Part number Merino leather (Map pocket, outer) - (D) Part number Merino leather (frame) - (E) Part number Walknappa leather Shrink-resistant (door rail) - (F) Stitch yarn (upper trim frame) - G) Stitch yarn --------------------------- Remaining door trim as LCSW --------------------------- |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427969231 | $1284.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427969232 | $1284.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear door |
S417A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427969235 | $1284.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427969236 | $1284.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system |
S677A=Yes S688A=Yes S752A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427969239 | $1284.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427969240 | $1284.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear door and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Individual audio system |
S417A=Yes S677A=Yes S688A=No S752A=No |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427969243 | $1284.97 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427969244 | $1284.97 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear door and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Individual audio system |
S417A=Yes S677A=No S688A=Yes S752A=No |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427969243 | $1284.97 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427969244 | $1284.97 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear door and HiFi System Professional DSP and Harman/Kardon Surround Sound system and Individual audio system |
S417A=Yes S677A=No S688A=No S752A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427969243 | $1284.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427969244 | $1284.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
