Indi. door trim, all-leather, front for BMW 5 Series E60 LCI 525i (2009)

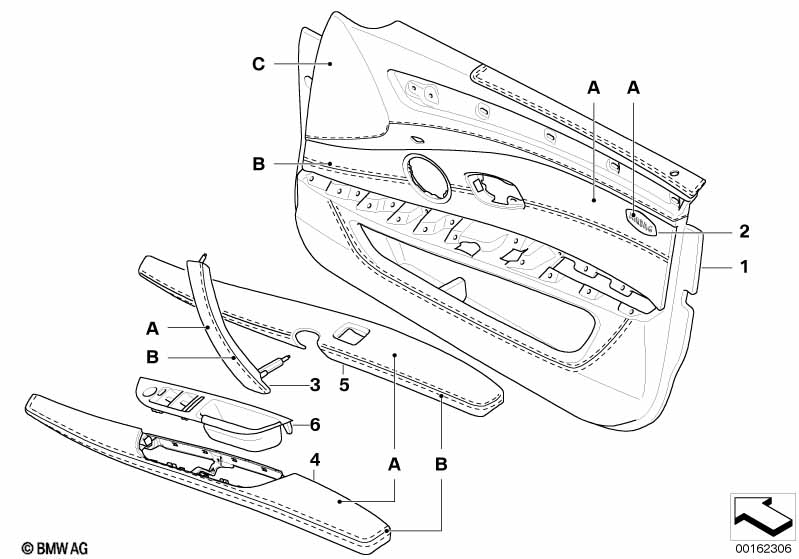

This Indi. door trim, all-leather, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number, leather - (B) Color data for threads = Matching - (C) Leather, black --------------------------- Version: . (A) Door panel, lower, cover, center, Armrest, close grip, Airbag label - in special leather . Upper section (C) - in Walknappa leather, shrink-resistant black (2 698 406) --------------------------- Version: only in leather Merino --------------------------- |
|||||||||
| Driver's side | ||||||||||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 03/2007 | 51417967274 | ENDED, NoS | Shop at ECS Tuning | |||
| Passenger's side | ||||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 03/2007 | 51417967273 | ENDED, NoS | Shop at ECS Tuning | |||
| Leather trim | ||||||||||
| 02 | Plaque Airbag | INDIVIDUAL | 2 | 03/2007 | 54217972593 | ENDED, NoS | Shop at ECS Tuning | |||
| Passenger's side | ||||||||||
| 03 | Interior handle, leather left | INDIVIDUAL | 1 | 03/2007 | 51417967265 | ENDED, NoS | Shop at ECS Tuning | |||
| Driver's side | ||||||||||
| 04 | Armrest, right | INDIVIDUAL | 1 | 03/2007 | 51417967270 | ENDED, NoS | Shop at ECS Tuning | |||
| Passenger's side | ||||||||||
| 05 | Armrest, left | INDIVIDUAL | 1 | 03/2007 | 51417967269 | ENDED, NoS | Shop at ECS Tuning | |||
| Driver's side | ||||||||||
| 06 | Handle recess, right | SCHWARZ | 1 | 03/2007 | 51418044478 | Shop at ECS Tuning | ||||
| For vehicles with Interior/outside mirror with auto dip Driver's side |
S430A=Yes |
|||||||||
| 06 | Handle recess, right | SCHWARZ | 1 | 03/2007 | 51418044482 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
