Indiv. rear door trim panel,part.leather for BMW 5 Series E61 LCI 525xi (2010)

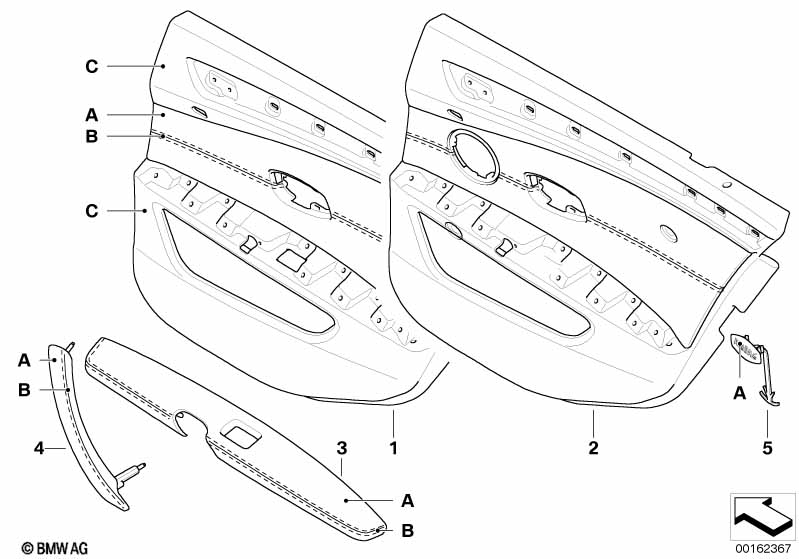

This Indiv. rear door trim panel,part.leather technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number, leather - (B) Color data for threads = Matching - (C) Color data for upper section / lower section --------------------------- Version: . Center cover, armrest, close grip Airbag label (A) - in leather . Upper section / Lower section (C) - in PVC foil --------------------------- Version: only in leather Merino --------------------------- |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967275 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967276 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers |
S261A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967243 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967244 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door |
S416A=Yes S417A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967279 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967280 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and Roller sun vizor, rear door |
S261A=Yes S416A=Yes S417A=No |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967247 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967248 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and Roller sun vizor, rear door |
S261A=Yes S416A=No S417A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967247 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967248 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with HiFi System Professional DSP or Individual audio system |
S677A=Yes S752A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967277 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967278 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and HiFi System Professional DSP and Individual audio system |
S261A=Yes S677A=Yes S752A=No |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967245 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967246 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and HiFi System Professional DSP and Individual audio system |
S261A=Yes S677A=No S752A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967245 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967246 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear door and HiFi System Professional DSP and Individual audio system |
S417A=Yes S677A=Yes S752A=No |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967241 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967242 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear door and HiFi System Professional DSP and Individual audio system |
S417A=Yes S677A=No S752A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967241 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967242 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear door and HiFi System Professional DSP and Individual audio system |
S261A=Yes S417A=Yes S677A=Yes S752A=No |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967249 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967250 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear door and HiFi System Professional DSP and Individual audio system |
S261A=Yes S417A=Yes S677A=No S752A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967249 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967250 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 03 | Armrest, rear left | INDIVIDUAL | 1 | 03/2007 | 51427967227 | $197.95 | ENDED, NoS | Shop at ECS Tuning | ||
| 03 | Armrest, rear right | INDIVIDUAL | 1 | 03/2007 | 51427967228 | $197.95 | ENDED, NoS | Shop at ECS Tuning | ||
| 04 | Interior handle, leather left | INDIVIDUAL | 1 | 03/2007 | 51417967229 | $97.95 | ENDED, NoS | Shop at ECS Tuning | ||
| 04 | Interior handle, leather right | INDIVIDUAL | 1 | 03/2007 | 51427967230 | $97.95 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers Leather trim |
S261A=Yes |
|||||||||
| 05 | Plaque Airbag | INDIVIDUAL | 2 | 03/2007 | 54217972593 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
