Individual Eucalyptus bar reddish brown for BMW 5 Series E60 LCI 525d (2009)

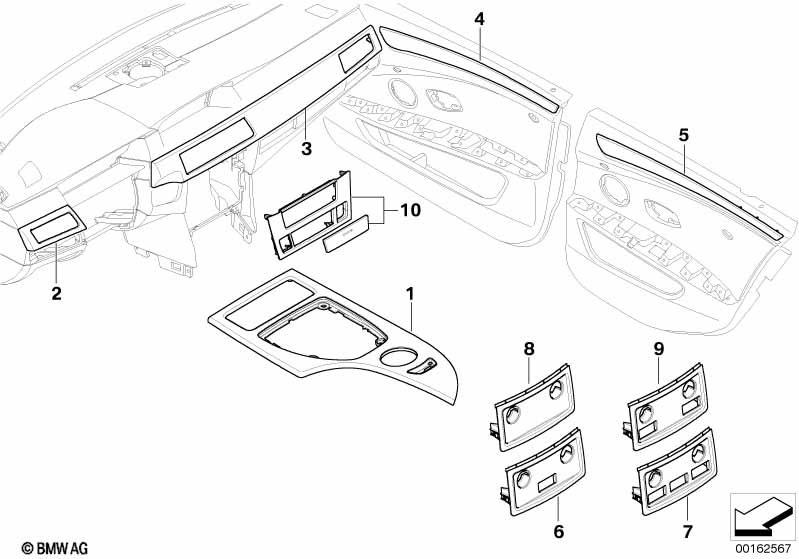

This Individual Eucalyptus bar reddish brown technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 ---------------------------------------- Standard parts are also installed in individual vehicles. It is necessary to check beforehand that the required spare part is not a standard part. --------------------------- |
|||||||||
| 01 | Decor panel with oddments tray | EUKALYPTUS ROT | 1 | 09/2008 | 51167960128 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Wood panel, instrument panel, right | EUKALYPTUS ROT | 1 | 03/2007 | 51457968658 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Wood panel, instrument panel, left | EUKALYPTUS ROT | 1 | 03/2007 | 51457968657 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Wooden strip, door front left | EUKALYPTUS ROT | 1 | 03/2007 | 51417968661 | $386.48 | ENDED, NoS | Shop at ECS Tuning | ||
| 04 | Wooden strip, door front right | EUKALYPTUS ROT | 1 | 03/2007 | 51417968662 | $386.48 | ENDED, NoS | Shop at ECS Tuning | ||
| 05 | Wooden strip, door rear left | EUKALYPTUS ROT | 1 | 03/2007 | 51427968663 | $386.48 | ENDED, NoS | Shop at ECS Tuning | ||
| 05 | Wooden strip, door rear right | EUKALYPTUS ROT | 1 | 03/2007 | 51427968664 | $386.48 | ENDED, NoS | Shop at ECS Tuning | ||
| 06 | Cover centre console, rear | EUKALYPTUS ROT | 1 | 03/2007 | 51167968659 | $239.17 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Seat heating, rear |
S496A=Yes |
|||||||||
| 07 | Cover centre console, rear | EUKALYPTUS ROT | 1 | 03/2007 | 51167968660 | $203.06 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with USB/Audio interface |
S6FLA=Yes |
|||||||||
| 08 | Cover centre console, rear | EUKALYPTUS ROT | 1 | 03/2007 | 51167972062 | $199.44 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Seat heating, rear and USB/Audio interface |
S496A=Yes S6FLA=Yes |
|||||||||
| 09 | Cover centre console, rear | EUKALYPTUS ROT | 1 | 03/2007 | 51167972064 | $199.44 | ENDED, NoS | Shop at ECS Tuning | ||
| Decor cover MASK only applies to All leather equipment |
||||||||||
| 10 | Set of wooden covers | EUKALYPTUS ROT | 1 | 03/2007 | 51457972130 | ENDED, NoS | Shop at ECS Tuning | |||
| Decor cover MASK not suitable for All leather equipment |
||||||||||
| 10 | Set of wooden covers | EUKALYPTUS ROT | 1 | 03/2007 | 51457972129 | $469.47 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with TV function or Navigation system Professional Decor trim CCC not suitable for All leather equipment |
S601A=Yes S609A=Yes |
|||||||||
| 10 | Set of wooden covers | EUKALYPTUS ROT | 1 | 03/2007 | 51457972131 | $469.47 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with TV function or Navigation system Professional Decor trim CCC only applies to All leather equipment |
S601A=Yes S609A=Yes |
|||||||||
| 10 | Set of wooden covers | EUKALYPTUS ROT | 1 | 03/2007 | 51457972132 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
