Indi. door panel, leathr trim, front, LC for BMW 5 Series E61 LCI 525xi (2010)

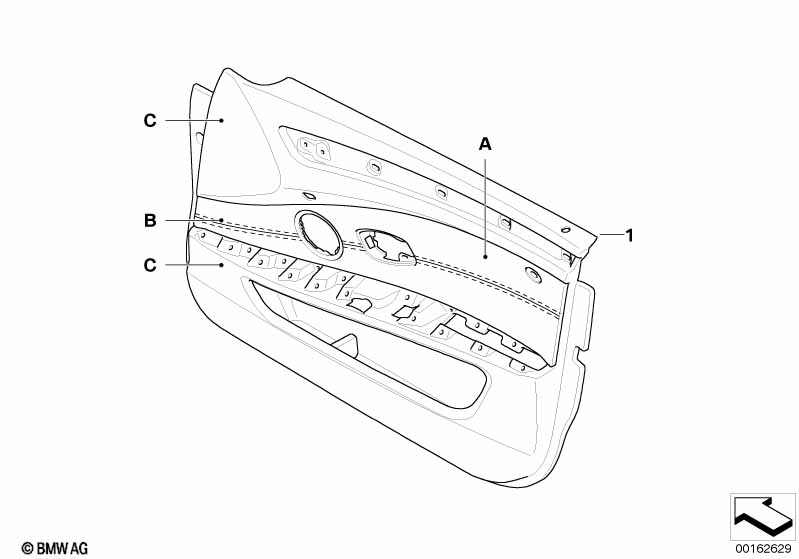

This Indi. door panel, leathr trim, front, LC technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number, leather - (B) Color data for threads = Matching - (C) Color data for upper section / lower section --------------------------- Version: . Trim cover, center (A) - in leather . Upper / lower section (C) - in PVC foil --------------------------- Version: only in leather Dakota Seam pattern = LC --------------------------- |
|||||||||
| Driver's side | ||||||||||
| 01 | Door trim panel, front left | INDIVIDUAL | 1 | 03/2007 | 51417967261 | $1468.56 | ENDED, NoS | Shop at ECS Tuning | ||
| Passenger's side | ||||||||||
| 01 | Door trim panel, front right | INDIVIDUAL | 1 | 03/2007 | 51417967262 | $1468.56 | ENDED, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
