Indi. door trim panel, leather, rear, LC for BMW 5 Series E60 LCI 535d (2009)

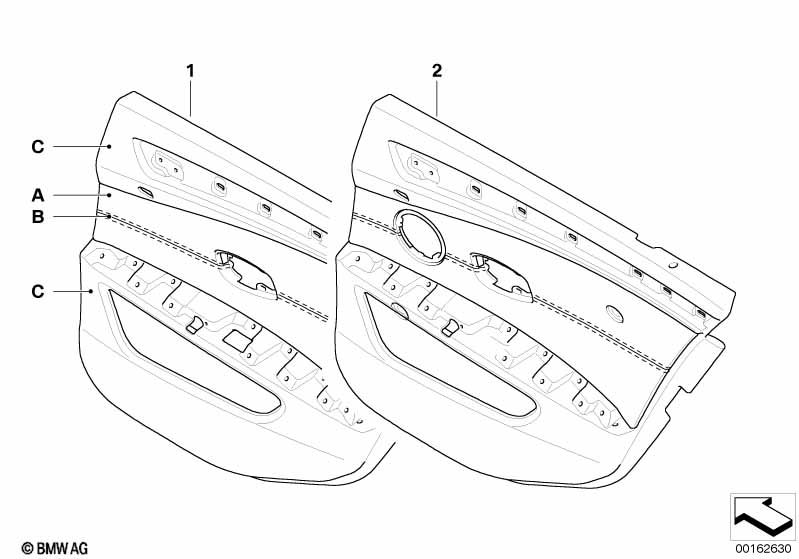

This Indi. door trim panel, leather, rear, LC technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number, leather - (B) Color data for threads = Matching - (C) Color data for upper section / lower section --------------------------- Version: . Trim cover, center (A) - in leather . Upper / lower section (C) - in PVC foil --------------------------- Version: only in leather Dakota Seam pattern = LC --------------------------- |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967275 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967276 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers |
S261A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967243 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967244 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear lateral or Roller sun vizor, rear door |
S416A=Yes S417A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967279 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967280 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and Roller sun vizor, rear door |
S261A=Yes S416A=Yes S417A=No |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967247 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967248 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and Roller sun vizor, rear door |
S261A=Yes S416A=No S417A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967247 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967248 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with HiFi System Professional DSP or Individual audio system |
S677A=Yes S752A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967277 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967278 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Individual audio system |
S416A=Yes S677A=Yes S752A=No |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967241 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967242 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear lateral and HiFi System Professional DSP and Individual audio system |
S416A=Yes S677A=No S752A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967241 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967242 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and HiFi System Professional DSP and Individual audio system |
S261A=Yes S677A=Yes S752A=No |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967245 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967246 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and HiFi System Professional DSP and Individual audio system |
S261A=Yes S677A=No S752A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967245 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967246 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and HiFi System Professional DSP and Individual audio system |
S261A=Yes S416A=Yes S677A=Yes S752A=No |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967249 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967250 | $1101.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral and HiFi System Professional DSP and Individual audio system |
S261A=Yes S416A=Yes S677A=No S752A=Yes |
|||||||||
| 02 | Door lining leather rear left | INDIVIDUAL | 1 | 03/2007 | 51427967249 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Door lining leather rear right | INDIVIDUAL | 1 | 03/2007 | 51427967250 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
