Individual instrument panel, leather for BMW 3 Series E90 LCI 320d (2011)

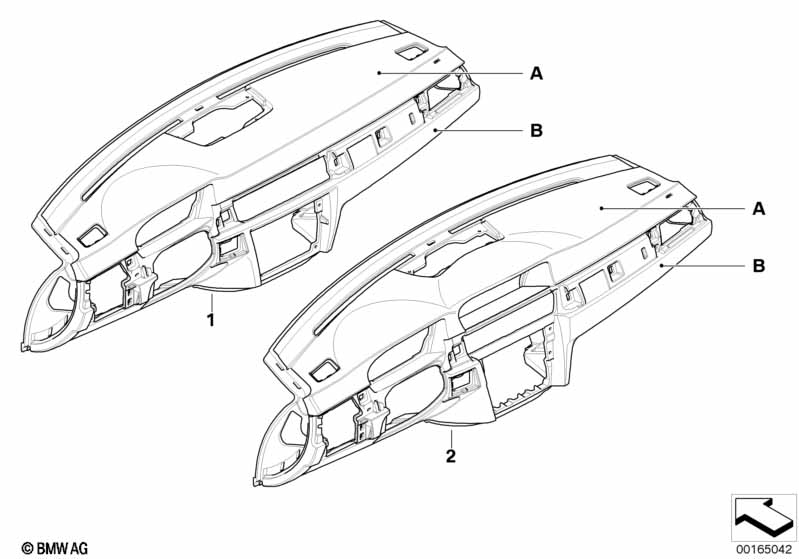

This Individual instrument panel, leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) = Black film with grain pattern - (B) = Part no. for special leather --------------------------- |
|||||||||
| For vehicles with M Drive or On-board monitor with TV or Navigation system Business or Navigation system Professional |
S2MDA=Yes S602A=Yes S606A=Yes S609A=Yes |
|||||||||
| 02 | Panel for instrum. panel, double scoop | INDIVIDUAL | 1 | 09/2005 | 51457966657 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320d Individual instrument panel, leather?
- This technical diagram illustrates the Individual instrument panel, leather within the Individual equipment group for the 3 Series E90 LCI 320d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Panel for instrum. panel, double scoop (Part #51457966657).
- Which models use the hardware listed in this Individual instrument panel, leather?
- The hardware and components featured in the Individual instrument panel, leather are specific to the 3 Series E90 LCI 320d produced during 2011. These technical specifications ensure that parts like the Panel for instrum. panel, double scoop (51457966657) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual instrument panel, leather assembly?
- Each item in the Individual instrument panel, leather corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320d, you can identify the Panel for instrum. panel, double scoop by locating its position on the schematic, which then links to the official BMW part number 51457966657 for the Individual equipment section.
